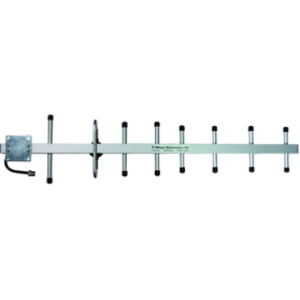

Wilson's 13 dB 800 MHz Yagi Antenna will collect the cell tower signal and send it through the cable to an amplifi er or directly to the cell phone or cellular data card. When the cell phone or cellular data card transmits, the signal is transferred to an amplifi er or directly to the antenna and broadcast back to the cell tower.
- Designed to operate at 806 MHz to 939 MHz frequency
- Yagi - Even receive weak signals thanks to the antenna's reduced interface and high gain features
| Brand | |
|---|---|
| Brand | Wilson Electronics |
| Networking & Connectivity | |
|---|---|
| Polarization | Horizontal/Vertical |
| Antenna Gain (Isotropic) | 13 dBi |
| Frequency Band Type | UHF |
| Audio | |
|---|---|
| Impedance | 50 Ohm |
| Directivity | Directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Yagi |
| General Features | |
|---|---|
| Number of Connectors | 1 |
| Operating Frequency Range | 806 MHz to 939 MHz |
| Manufacturer | Wilson Electronics |
| Cables | |
|---|---|
| Connector Type | N-Type |
