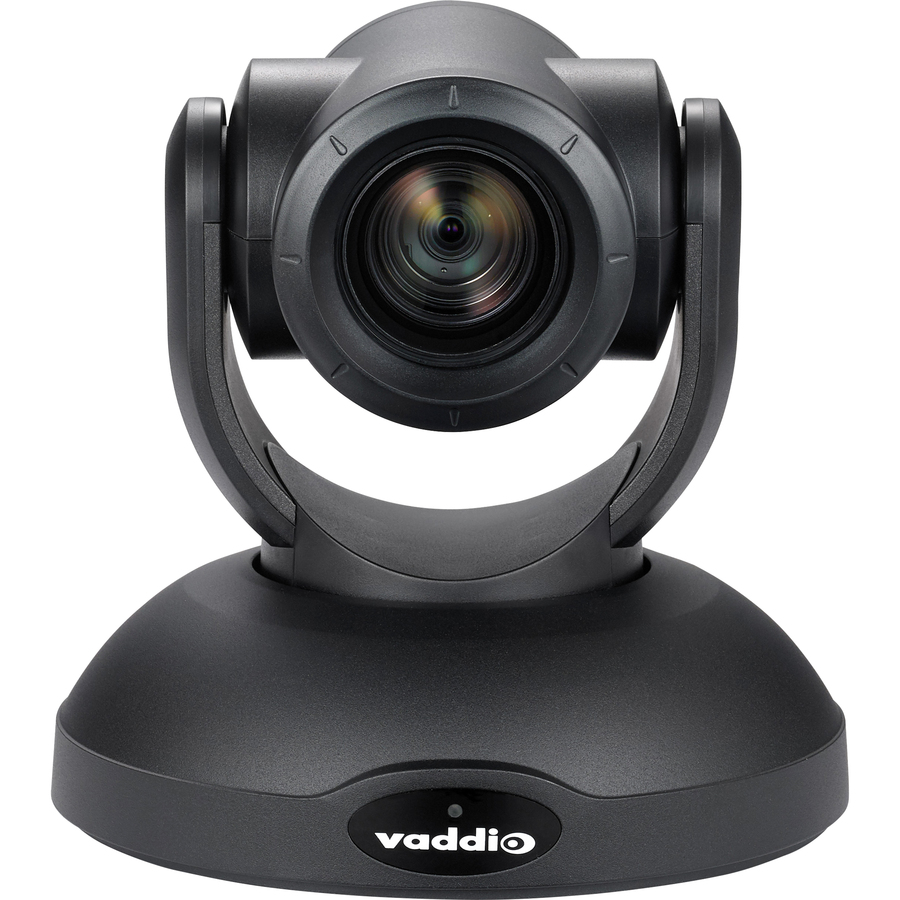

Vaddio RoboSHOT 20 UHD OneLINK HDMI Video Conferencing System - PTZ Camera - Black

7,279.20 7,279.20
7,279.20

7,279.20 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Digital Zoom
  • Focus Modes
  • HDMI Out
  • Product Color
  • Mounting Type
  • Effective Resolution
  • Maximum Video Resolution
  • Image Sensor Type
  • Interpolated Resolution
  • TAA Compliant
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • Power Source Type
  • Field Of View (FOV) Angle
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System combines a powerful Ultra HD PTZ camera with Vaddio's robust OneLINK HDMI for clean camera extension.

The RoboSHOT 20 Ultra HD has pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.

  • Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
  • Horizontal field of view 74° (wide) to 4.8° (tele) at 20x
  • Simple, clutter-free camera extension with HDBaseT technology
  • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
  • Simultaneous HDMI and IP Streaming outputs
Brand
Brand Legrand Group
Power & Battery
Power Source Type DC
HDMI Ports
HDMI Out Yes
Camera / Webcam
Digital Zoom 1.7x
Focus Modes Auto/Manual
Effective Resolution 8.9 Megapixel
Maximum Video Resolution 3840 x 2160
Image Sensor Type Exmor R CMOS
Field Of View (FOV) Angle 74°
Size / Dimensions
Mounting Type Wall
General Features
Manufacturer Legrand Group
Printer/Scanner/Fax Specs
Interpolated Resolution 9 Megapixel
Compliance & Certification
TAA Compliant Yes
