Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling
The U-Cable-C6-CMP is a Category 6 UTP cable that supports speeds up to 1Gbps with its 23 AWG solid copper, twisted pair conductor. The conductor's small diameter, combined with the cable's anti-crosstalk divider, isolates and protects signals from interference. The U-Cable-C6 is also a CMP cable with a fire-resistant jacket that ensures full fire prevention, which is especially critical in plenum spaces where air is circulated to facilitate building HVAC. Category 6 Ethernet connectors are recommended to accommodate the conductor's size and optimize its performance.
- Category 6 Unshielded Twisted Pair (UTP) cable
- Communications Multipurpose Cable, Plenum (CMP)-rated, fire-resistant jacket

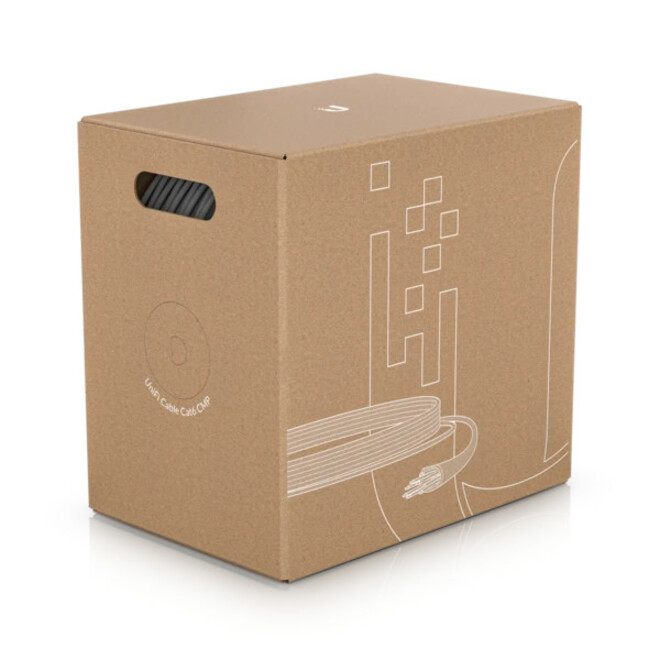

- 1,000 ft (305 m)
- 23 AWG solid copper conductor pair
- Anti-crosstalk divider
- For 1000BASE-T Ethernet applications
| Brand | |
|---|---|
| Brand | Ubiquiti Inc. |
| General Features | |
|---|---|
| Data Transfer Rate | 1 Gbit/s |
| Manufacturer | Ubiquiti Inc. |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 1000 ft |
| Cable Type | Category 6 |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Jacket Material | Low Smoke Fire Resistant Polyvinyl Chloride (LS FR-PVC) |
| Jacket Type | Plenum |
| Shielding | No |
| American Wire Gauge | 23 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
