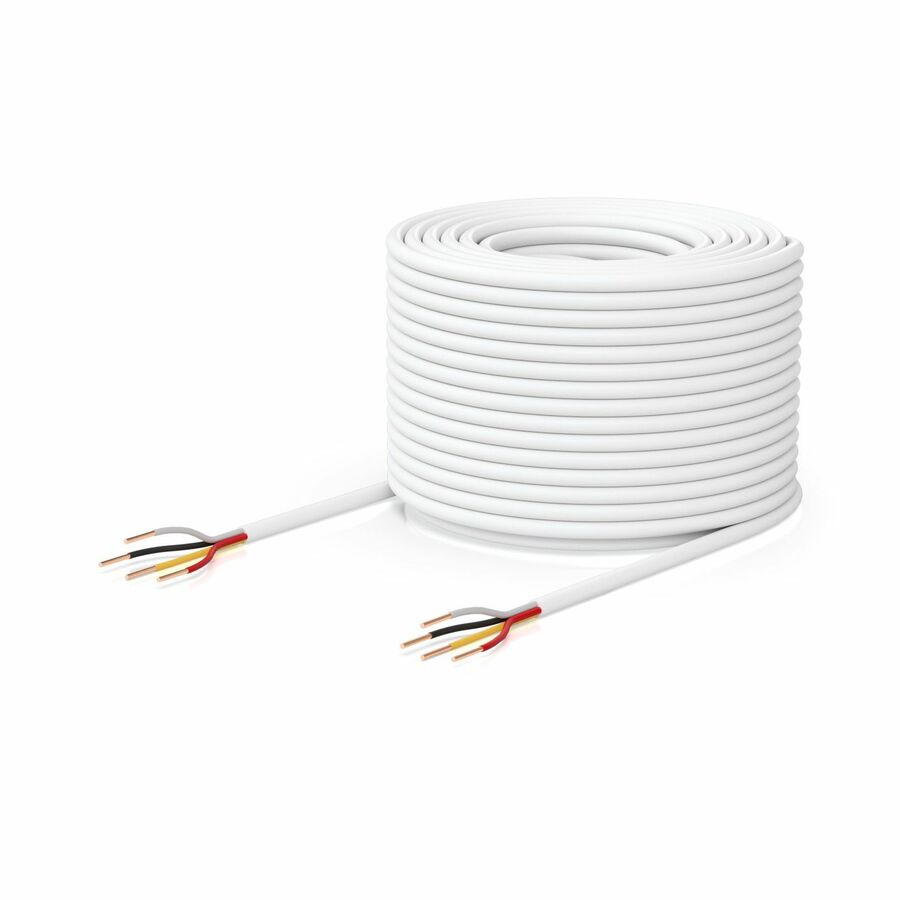

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
1-Pair Relay Cable:
- (2) 18 AWG conductors for an electric/magnetic lock
2-Pair Relay Cable:
- (2) 18 AWG conductors for an electric/magnetic lock
- (2) 22 AWG conductors for a door position sensor
Cable length 152.4 m
Plenum-rated
- Provides you complete control over devices
- Features Bare Wire cable type for optimal performance and better dependability
- Door Lock device supported for better reliance and optimal performance
| Brand | |
|---|---|
| Brand | Ubiquiti Inc. |
| General Features | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Cables | |
|---|---|
| Cable Length | 500 ft |
| Cable Type | Bare Wire |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Jacket Type | VW-1 |
| Jacket Color | White |
| American Wire Gauge | 18/22 AWG |
| Number of Pairs | 2 |
| Number of Conductors | 4 |
| Insulation Color | Amber |
| Insulation Material | Semi-rigid Polyvinyl Chloride (SR-PVC) |
Ubiquiti Door Lock Relay Cable
