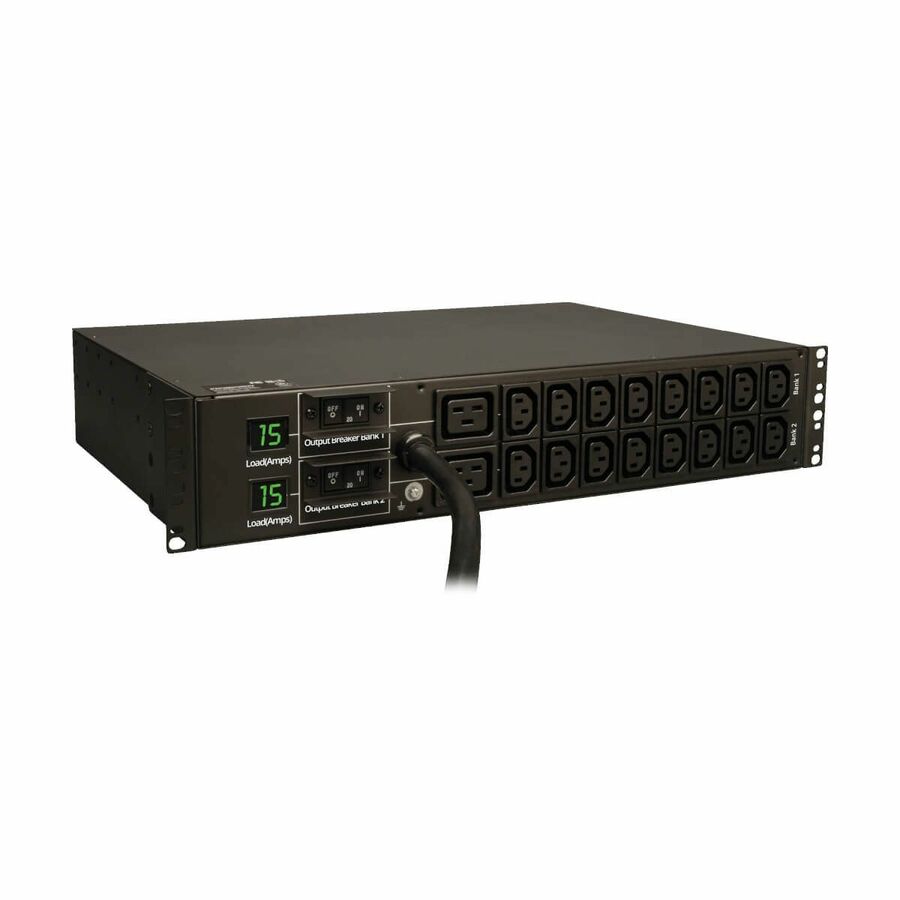

PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
- Reversible housing, 2U 208/240V rackmount metered PDU
- TAA Compliant
- 18 total outlets (16 C13, 2 C19)
- Two built-in meters report output current in amps for each load bank
- Attached 12ft / 3.6m cord with NEMA L6-30P input plug
- Metered single phase 30A 208/240V 2U horizontal rackmount PDU
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacle Detail | 16 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332159021 |
| MPN | PDUMH30HV |
| Unit Count | 1 Units |
| Warranty | 2 Year |
