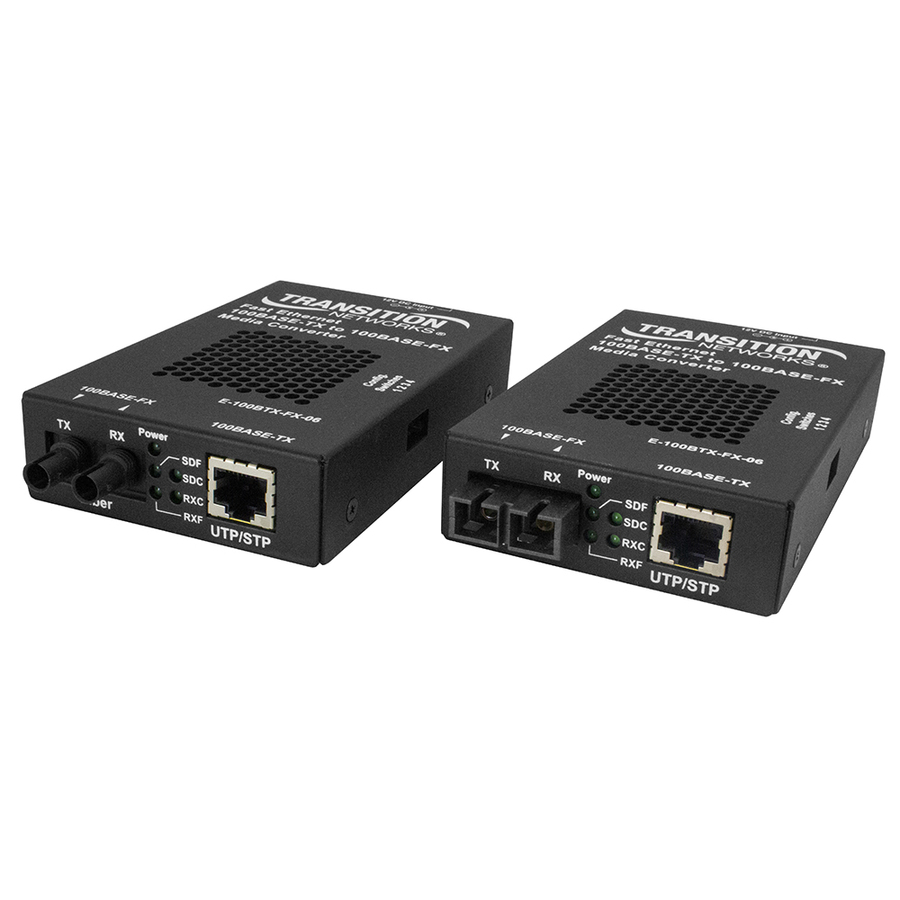

Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX

Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX

$ 242.49 $ 242.49
$ 242.49

$ 242.49 / Units
  • Brand
  • Color - Not Specified
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Fiber Mode Supported
  • Total Number of Ports
  • Number of LC Ports
  • Fiber Optic Cable Wavelength
  • Form Factor
  • Maximum Height Adjustment (Above)
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • Maximum Operating Power Consumption
  • Environmentally Friendly
  • Environmental Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Condition
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Sourced directly through verified US distributors
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.

  • Automatic link restoration
  • Supports all 100Mbps SFP Modules
  • Auto-MDI/MDIX
  • Active link pass through
  • Far-End-Fault (FEF)
  • Pause
  • Low latency, layer 1 design
  • Auto-negotiation
  • Used in pairs or as a single unit to integrate fiber into a 100base copper environment
Brand
Brand Lantronix
Power & Battery
Maximum Operating Power Consumption 1.75 W
Power Source Power Supply
Networking & Connectivity
Network Technology 100Base-FX
Ethernet Port
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Size / Dimensions
Form Factor DIN Rail Mountable
Maximum Height Adjustment (Above) 1"
Appearance
Color Not Specified
General Features
Maximum Distance Supported 2 km
Manufacturer Lantronix, Inc
Product Condition New
Misc Ports
Total Number of Ports 2
Number of LC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Mode Supported Multi-mode
Fiber Optic Cable Wavelength 1300 nm
Compliance & Certification
Environmentally Friendly Yes
Brand Lantronix, Inc
UPC/GTIN 648177043316
MPN E-100BTX-FX-06(LC)-NA
Unit Count 1 Units
Warranty Lifetime
Return Policy This product is eligible for 30-day returns. See our return policy for details.
Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX - 1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 2 km - Power Supply - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable
