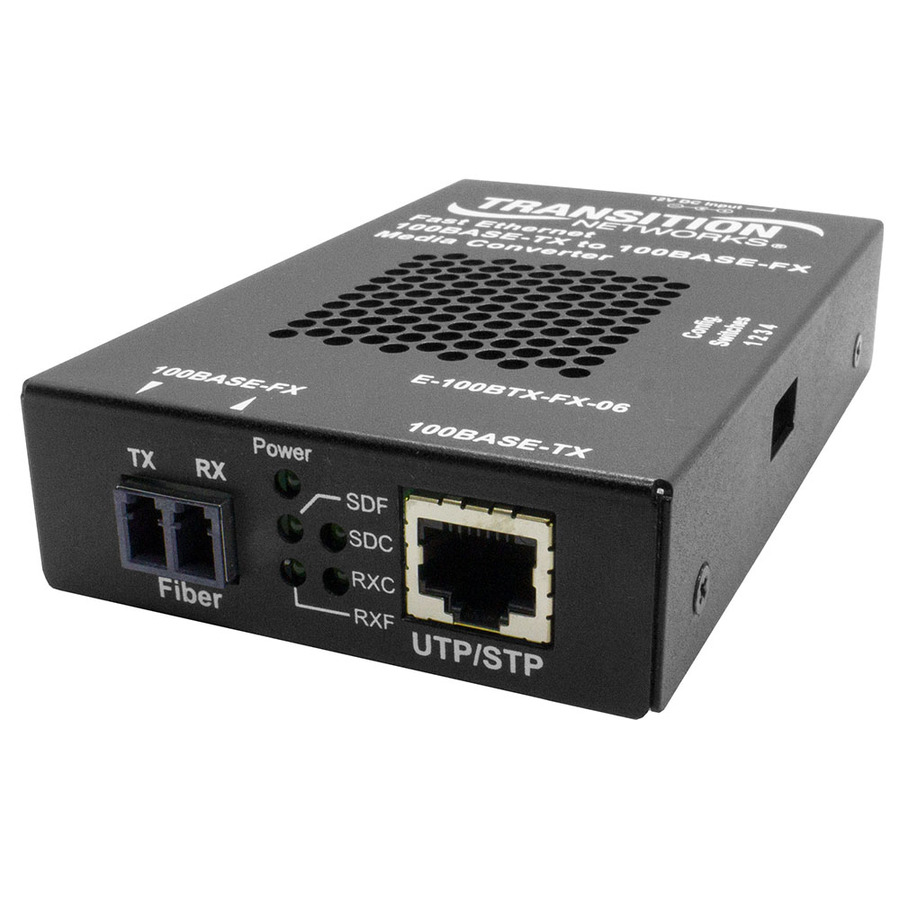

Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX

$ 375.99 $ 375.99
$ 375.99

$ 375.99 / Units
  • Brand
  • Color - Not Specified
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Fiber Mode Supported
  • Total Number of Ports
  • Number of LC Ports
  • Fiber Optic Cable Wavelength
  • Form Factor
  • Maximum Height Adjustment (Above)
  • Ethernet Technology
  • Media Type Supported
  • Maximum Distance Supported
  • Maximum Operating Power Consumption
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.

  • Supports all 100Mbps SFP Modules
  • Far-End-Fault (FEF)
  • Pause
  • Automatic link restoration
  • Auto-negotiation
  • Auto-MDI/MDIX
  • Active link pass through
  • Used in pairs or as a single unit to integrate fiber into a 100base copper environment
  • Low latency, layer 1 design
Brand
Brand Lantronix
Power & Battery
Maximum Operating Power Consumption 1.75 W
Power Source Power Supply
Networking & Connectivity
Network Technology 100Base-FX
Ethernet Port
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Size / Dimensions
Form Factor DIN Rail Mountable
Maximum Height Adjustment (Above) 1"
Appearance
Color Not Specified
General Features
Maximum Distance Supported 20 km
Manufacturer Lantronix, Inc
Misc Ports
Total Number of Ports 2
Number of LC Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Mode Supported Single-mode
Fiber Optic Cable Wavelength 1310 nm
Compliance & Certification
Environmentally Friendly Yes
Brand Lantronix, Inc
UPC/GTIN 648177043262
MPN E-100BTX-FX-06(SMLC)-NA
Unit Count 1 Units
Warranty Lifetime
Return Policy This product is eligible for 30-day returns. See our return policy for details.
Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX - 1 x Network (RJ-45) - 1 x LC Ports - Single-mode - 1310 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 20 km - Power Supply - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable
