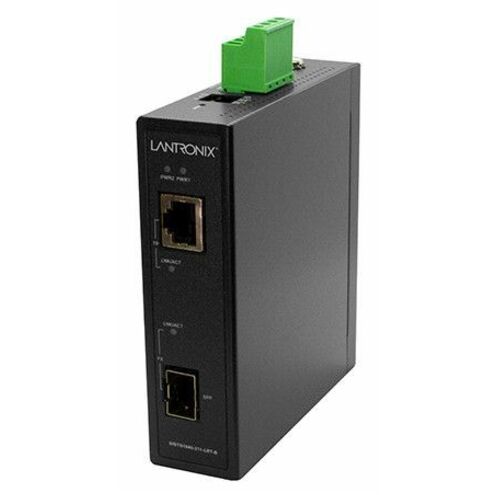

The SISTG10xx-211-LRT-B Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks' hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- Dual, Redundant, 12-48 VDC Power Inputs
- Reverse Polarity Power Input Protection
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Maximum Operating Power Consumption | 3.40 W |
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Ethernet Controller Manufacturer | Lantronix, Inc |
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| Maximum Height Adjustment (Above) | 4.3" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.10 km |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Brand | Lantronix, Inc |
| UPC/GTIN | 648177042333 |
| MPN | SISTG1040-211-LRT-B |
| Unit Count | 1 Units |
| Warranty | 5 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 0.10 km - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply - Rail-mountable
