The M/GE-PSW-SFP-01 is a 10/100/1000 Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 10/100/1000Base-T ports and 100/1000Base-X ports. With its fixed configuration, deployments are just plug-and-play and the hot-swappable dual speed SFP port supports autosensing 100M or 1000M SFP transceivers. A wide variety of SFP optical transceivers are available to offer a full range of deployment options over multimode or single mode fiber. This Mini is an ideal solution for fiber integration in both Fast Ethernet and Gigabit Ethernet environments, along with its small size, it is perfect for locations where space is limited.
- Jumbo Frame (up to 10240Bytes)
- USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
- Active Link Pass Through
- Automatic Link Restoration
- Fixed Full-Duplex on Fiber
- Auto-MDI/MDIX
- Auto-Negotiation
- Unit & Port LEDs allow for quick status information
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rail-mountable |
| General Features | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

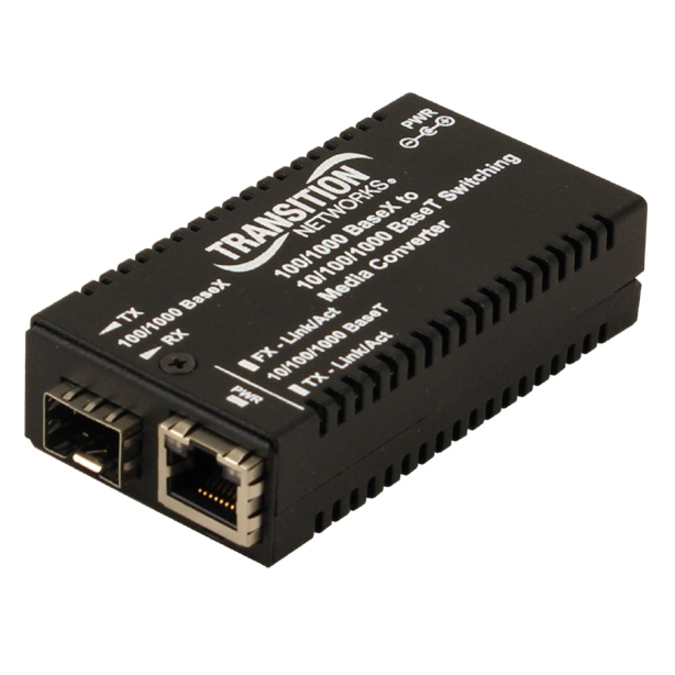

Transition Networks Mini Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply - Standalone, Wall Mountable, Rack-mountable, Rail-mountable - TAA Compliant
