Internet Goes Further with Your Home's Electricity System

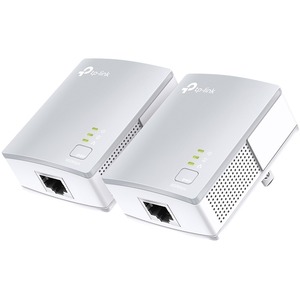

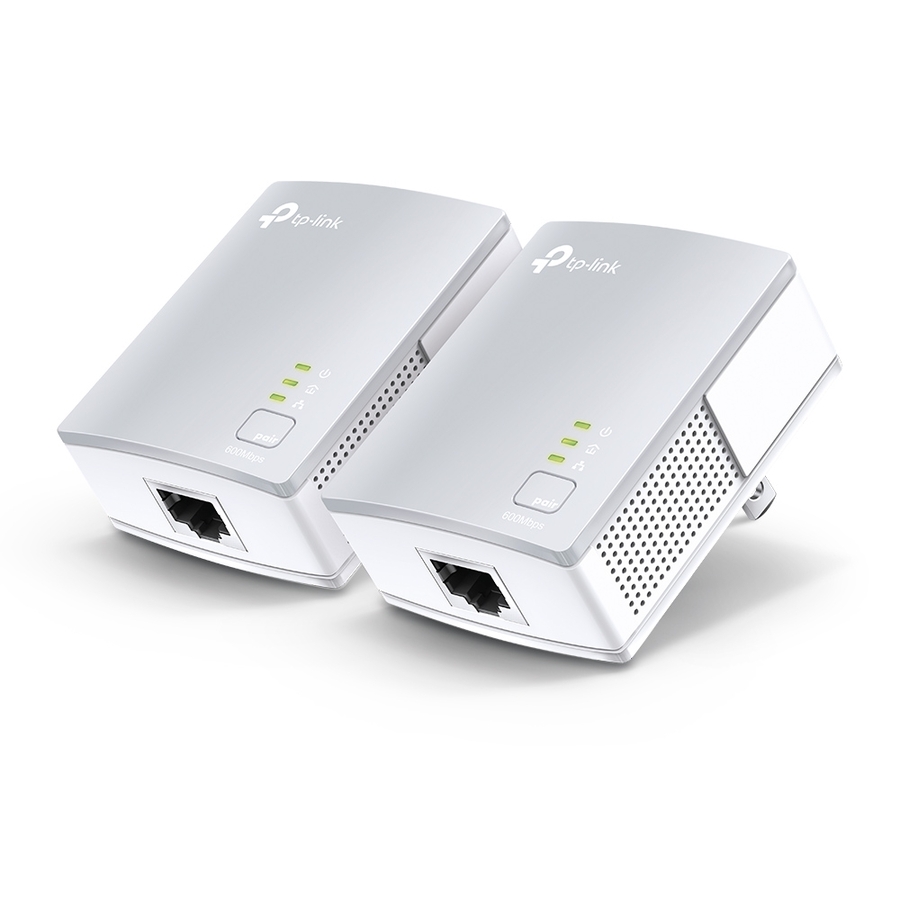

AV600 Powerline Adapter Starter Kit
TL-PA4010 KIT
Extend Wired Network to Any Room Using Existing Electricity System
With advanced HomePlug AV600, the TL-PA4010 KIT transforms your home's existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired network to anywhere there is a power outlet.
Play and Play with No Configuration Required
Ditch the complicated setup process for good. Get started with powerline in just two steps:
Step1: connect one adapter to your router.Step2: plug in another adapter wherever you need wired internet service.
AV600 Speeds and 300 Meters Range
Using advanced Home Plug AV2 technology, TL-PA4010 KIT provides stable and high-speed data transmissions of up to 600 Mbps for ranges of up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Miniature Design, Ultra-compact
With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than almost general 600Mbps Powerline Products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.
Saves Up to 85% on Power
TL-PA4010 KIT automatically switches from its "Working" mode to efficient "Power-Saving" mode when not in use, reducing energy consumption by up to 85%.
- Compatible with all TP-Link Powerline Ethernet Adapters AV2000, AV1300, AV1200, AV1000, AV600, AV500, AV200. Please purchase TL-WPA4220 or TL-WPA4220KIT if you need Wi-Fi.
- Please note that the Powerline Adapters need to be on the same circuit(not necessary to be in 1 room). Powerline adapters must be deployed in sets of 2 or more.
- Power Saving Mode: TL-PA4010 KIT automatically switches from its "Working" mode to efficient "Power-Saving" mode when not in use, reducing energy consumption by up to 85%.
- Miniature design: Smaller than most Powerline adapters in the market, blends discreetly in front of any power outlet.
- Network expansion: The TL-PA4010 KIT transforms your home's existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired network to anywhere there is a power outlet(Up to 300 meters).
- Plug and Play: No new wires and no configuration required; Step 1: connect 1 adapter to your router. Step 2: plug in another Powerline adapter wherever you need wired i
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Networking & Connectivity | |
|---|---|
| Powerline Transmission Standa | HomePlug AV2 |
| Wireless LAN | No |
| Powerline Data Transfer Rate | 600 Mbit/s |
| Powerline Transmission Standard | HomePlug AV2 |
| Modulation | OFDM |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | No |
| Audio Ports | |
|---|---|
| Audio Line Out | No |
| Audio Line In | No |
| General Features | |
|---|---|
| Maximum Distance Supported | 0.30 km |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Video Ports | |
|---|---|
| BNC | No |
| Telephony | |
|---|---|
| Phone Line (RJ-11) | No |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
