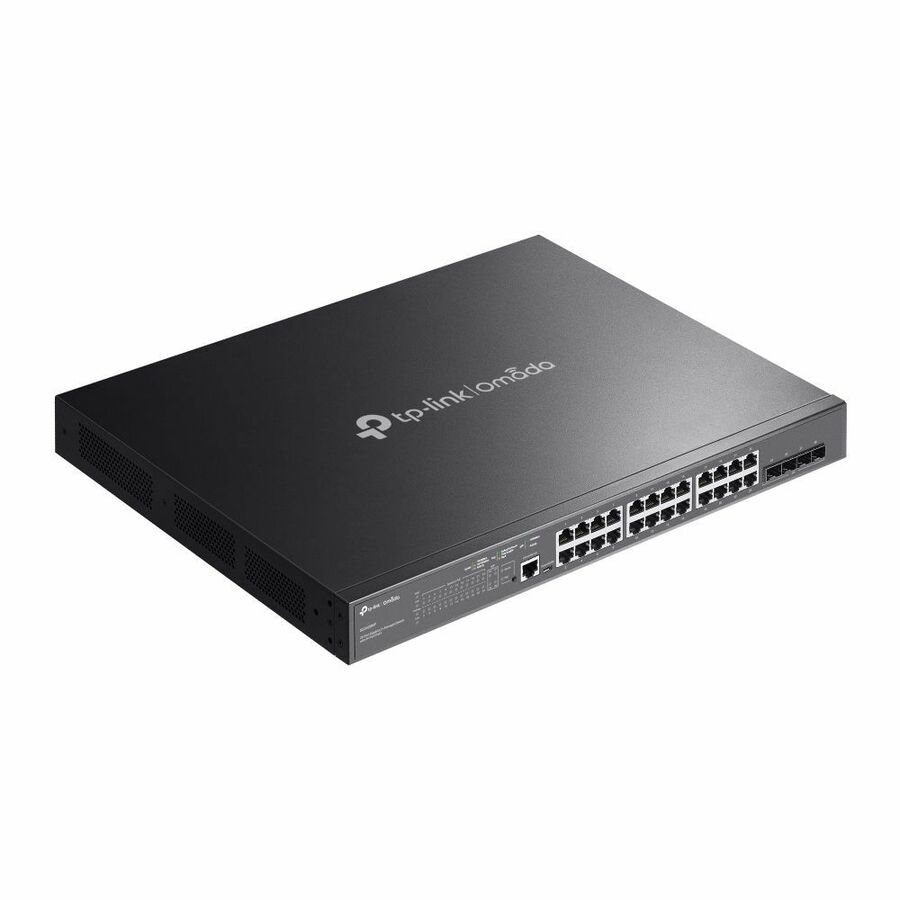

TP-Link 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

$ 403.49 $ 403.49
$ 403.49

$ 403.49 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Compatible Rack Unit
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • Frequency
  • Environmental Compliance
  • Package Contents
  • Manufacturer
  • Product Type
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Omada 28-Port Gigabit L2+ Managed Switch with24-PortPoE+

  • 24� Gigabit PoE+ Ports,
  • 4� Gigabit SFP Slots
  • 384 W Total PoE Budget
  • Zero-Touch Provisioning
  • Centralized Management
  • Omada App
  • Static Routing
  • Ethernet Ring Protection Switching
  • Traffic Separation

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios | Surveillance

Works with IP Cameras

Conference Call

Works with IP Phones

Wi-Fi Coverage

Works with Access Points

Wired Connections

Works with Non-PoE Devices such as PCs and Printers

  • 24� Gigabit 802.3af/at PoE+ ports and 4� Gigabit SFP slots
  • 384 W total PoE budget with up to 30 W PoE output per port
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design
Brand
Brand TP-LINK Technologies Co.
Power & Battery
PoE Budget 384 W
Input Voltage 230 V AC
Power Source AC
Power Consumption 480.10 W
Networking & Connectivity
Network Technology 1000Base-X
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 25
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Rack-mountable
Compatible Rack Unit 1U
General Features
Manageable Yes
Maximum Data Transfer Rate 128 MB/s
Frequency 60 Hz
Manufacturer TP-LINK Technologies Co., Ltd
Expansion Slots
Total Number of Expansion Slots 4
Expansion Slot Type SFP
Number of SFP Slots 4
Misc Ports
Port/Expansion Slot Details 1� Micro-USB Console Port
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
