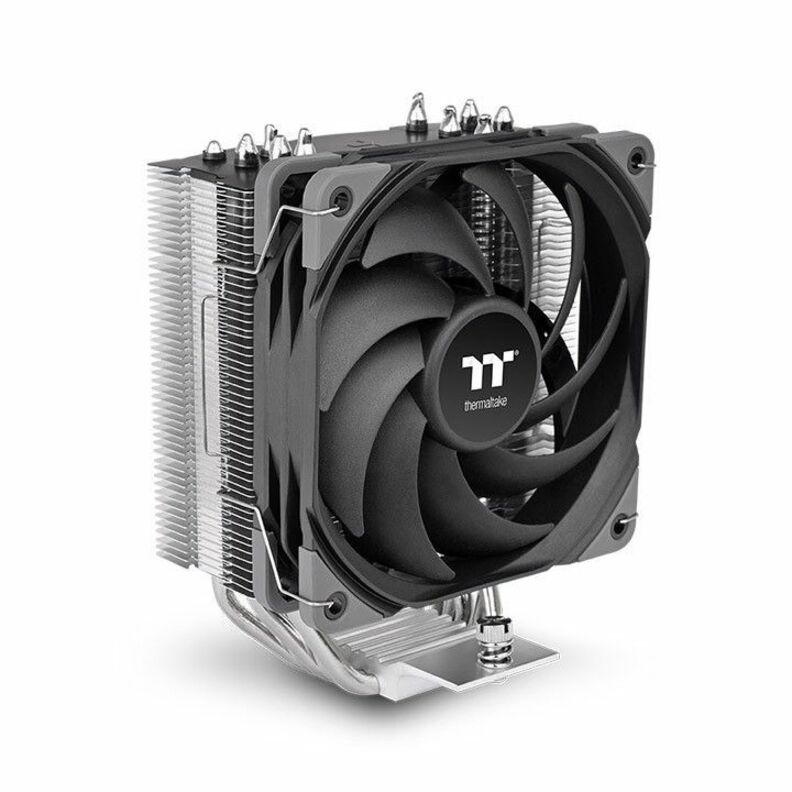

Efficient Air Cooling Solution
The UX500 features five �6mm U-shaped copper heat pipes in direct contact with the CPU for fast and reliable heat transfer. Its single-tower design, made with high-quality aluminum fins, ensures optimal heat dissipation, keeping your system cool and stable.
High Volume Airflow Design
The 120mm high airflow fan provides an airflow of 62.72 CFM and a static pressure of 1.47 mm-H2O, while maintaining a noise level of 25.0 dB-A. It enables a large volume of air to pass through the heat sink, offering exceptional cooling performance.
Reliable Hydraulic Bearing
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.
Flexible Choice of Pairing Components
The UX500 heat pipes and fin stack construction were designed for exceptional RAM compatibility, enabling you to pair with the RAM of your choice.
Universal Socket Compatibility
The UX500 comes with universal brackets for Intel and AMD CPUs, including the latest LGA1851 and AM5 CPU sockets.
- The fan and heatsink combo lets you experience efficient cooling and wintry air pleasure
- Features hydraulic bearing to improve longevity, silence, and stability
- 4.72" fan(s) helps the compatible cpus by maintaining a great balance of performance and efficiency
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| CPU / Processor | |
|---|---|
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible AMD Socket | AM2+ |
| Screen / Display | |
|---|---|
| Pulse-width Modulation (PWM) | Yes |
| Power & Battery | |
|---|---|
| Rated Current | 400 mA |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Fan Height | 0.98" |
| General Features | |
|---|---|
| Cooler Type | Air |
| Heatsink Material | Copper |
| Number of Heat Pipes | 5 |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Fan Bearing Type | Hydraulic Bearing |
| Maximum Air Pressure | 1.47mmH2O |
| Fan Speed (Max) | 1800 rpm |
| Fan Speed (Min) | 700 rpm |
| Number of Fans | 1 |
| Maximum Airflow | 62.72 CFM |
| Fan Life | 3.4 Year |
| Cables | |
|---|---|
| Connectors | 2510 - 4Pin |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 25 dB(A) |
