Long-Term Durability with Premium Components
Built with 100% high-quality Japanese 105°C electrolytic capacitors, the unit ensures long-term stability and durability, even under high temperatures and continuous heavy loads.
Next-Gen Ready Power

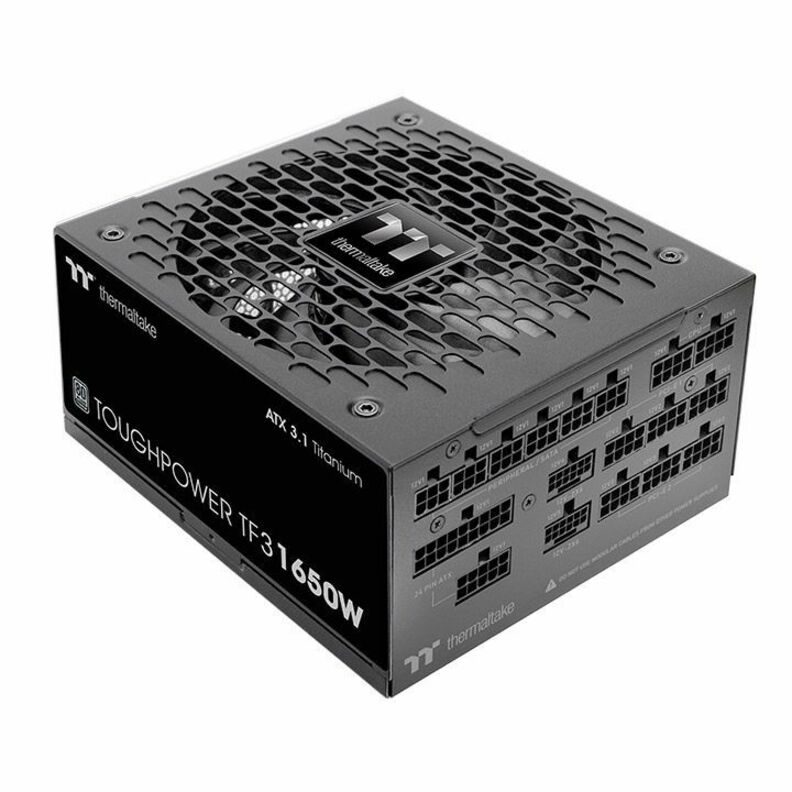

Toughpower TF3 1650W delivers reliable, high-efficiency output with Intel ATX 3.1 and PCIe Gen 5.1 (12V-2x6) support. Its robust +12V rail and advanced DC-DC design ensure next-gen stability and precise power delivery.
Full Modular Layout with Optimized Airflow
Features a fully modular design with low-profile etched black cables for easy installation, better airflow, and a cleaner build.
Built for Intel ATX 3.1 Standard
The Toughpower TF3 1650W Titanium fully complies with Intel ATX 3.1 specifications, supporting Intel C6/C7 low power states and ErP readiness for enhanced energy efficiency. It delivers reliable 1650W continuous power at 50°C, meeting strict power timing standards to ensure system stability and compatibility with modern PC builds.
PCIe Gen 5.1 Ready
The Toughpower TF3 1650W features two native PCIe 12V-2x6 connectors and includes two PCIe 12+4 pin cables, providing powerful and stable performance to meet the power demands of next-generation PCIe Gen 5.1 graphics cards.
Thermaltake Customized Cooling Fan
The Toughpower TF3 1650W features the Thermaltake customized cooling fan, it is designed with specially tuned fan blades to push air further.
Industry-Grade Safety Protections
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
Unlock Peak Overclocking Performance
The OCM switch gives you the power to optimize your system's performance with ease. By default, the power supply operates in Multi-Rail mode with Over Current Protection (OCP) to ensure maximum safety for your components. For overclocking enthusiasts, a simple press of the OCM switch transitions the power supply to Single 12V rail mode, unleashing enhanced power delivery when you need it most.
80 PLUS Titanium Efficiency
Certified for 80 PLUS Titanium with up to 94% efficiency, this unit delivers 1650W continuous output at 50°C. It ensures reduced power loss and optimized energy use, ideal for high-performance and energy-conscious builds.
- Converts current to the desired voltage and frequency to manage your power requirements
- 3.3 V DC ensures the safety of your device
- The 1650 W output power reduces fan noise
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| Power & Battery | |
|---|---|
| Number of (6+2 pin) PCI Expre | 9 |
| Number of SATA Power Connecto | 16 |
| Number of (4+4 pin) CPU Power | 2 |
| Modular Type | Fully Modular |
| Input Frequency | 50 - 60 Hz |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 5 V SB |
| Output Current | 3 A |
| Efficiency | 94% |
| Output Voltage Detail | 5 V SB @ 3 A |
| Power Factor Correction (PFC) | Active |
| Number of +12V Rails | 5 |
| Output Power | 1650 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Fan Diameter | 140 mm |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Protection Type | Over Temperature |
| MTBF | 100000 Hour |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Fan Bearing Type | Hydraulic Bearing |
| Number of Fans | 1 |
| Expansion Slots | |
|---|---|
| PCI Express Version | 5.1 |
| PCI Express Connector | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | 80 Plus Titanium |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Specification Compliance | ATX 3.1 |
