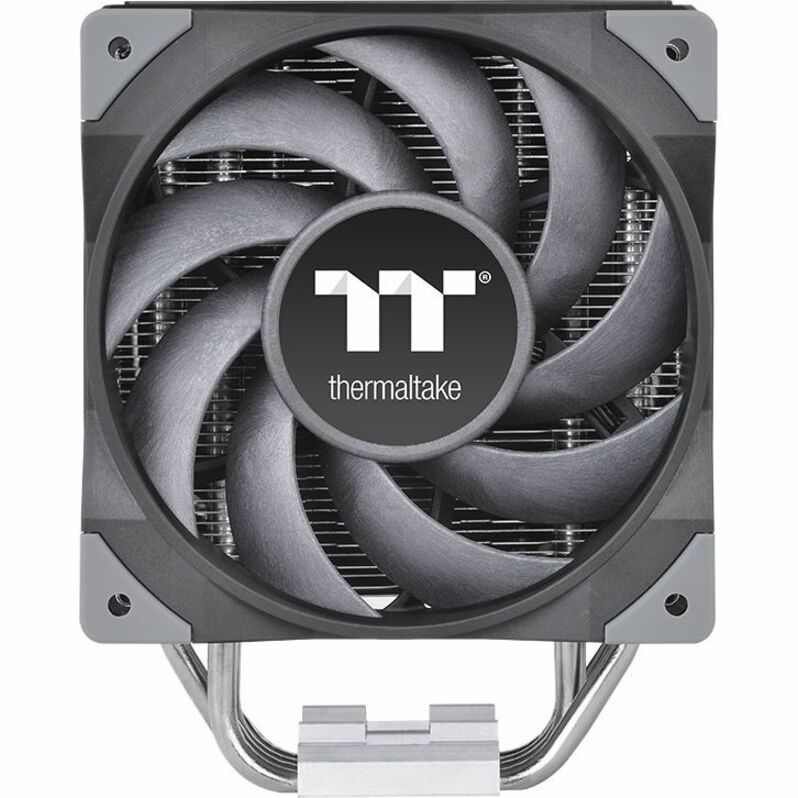

A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance.
Single Tower Dual Fan Design
TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.
Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.
Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.
High-Performance U-shape copper heat pipes
4 x �6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.
Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:
Intel LGA 1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
- Flawlessly absorbs the unwanted heat
- Helps the compatible processors by maintaining a great balance of performance and efficiency
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| CPU / Processor | |
|---|---|
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible AMD Socket | FM1 |
| Power & Battery | |
|---|---|
| Rated Current | 480 mA |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Fan Height | 0.98" |
| General Features | |
|---|---|
| Cooler Type | Air |
| Heatsink Material | Copper |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Maximum Air Pressure | 2.41mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Fan Speed (Min) | 500 rpm |
| Number of Fans | 2 |
| Maximum Airflow | 58.35 CFM |
| Fan Life | 4.6 Year |
| Cables | |
|---|---|
| Connectors | 2510 - 4Pin |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 23.6 dB(A) |
