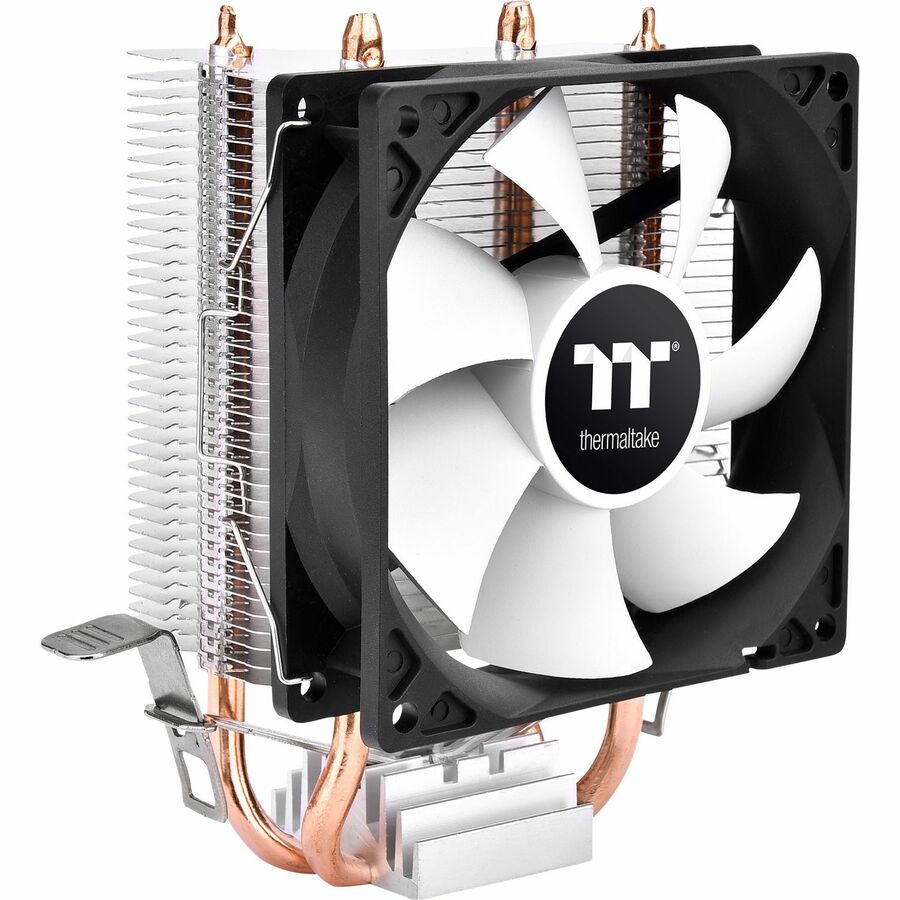

Contac 9 SE CPU Cooler is an air cooler with a 92mm PWM controlled fan that can produce airflow of 33.12 CFM, 1.02 mm- H2O air pressure while maintaining a 24.5 dB-A noise level. Its aluminum fins and 2 U-shaped heat pipes directly touch the CPU which helps provide adequate heat dissipation. The Contac 9 SE supports the latest Intel LGA 1700 and AM 4 sockets.
Superior Heat Dissipation
The heat sink is made of 0.4mm thick aluminum with 2.5mm air gaps and 2 �6mm solid copper heat pipes that run through the fins for maximum heat conductivity. The heat pipes are made to contact the CPU directly to ensure fast and efficient heat dissipation and enhances the overall thermal performance.
92mm PWM Controlled Fan
The Contac 9 SE is equipped with a 92mm PWM controlled fan that can produce a maximum fan speed of up to 2000 RPM, creating 33.12 CRM airflow and 1.02 mm H2O static pressure while maintaining a 24.5 dB-A noise level due to its hydraulic bearing design. The design of this fan guarantees optimal cooling performance and improves the lifespan of the unit.
Easy Installation of the Fan
The package contents of the Contac 9 SE includes specially designed fan clips that allows users to place the fan on the heat sink firmly and evenly, which makes assembly and dismantling much easier.
Non-Interference Cooling Design
The Contac 9 SE was designed with a non-interference concept, in which users may install high-performance RAM without the CPU cooler getting in the way.
Universal Socket Compatibility
Contac 9 SE now supports the latest Intel LGA 1700 socket, which allows users to stay in the latest trends. It also fits both Intel and AMD sockets, including the following models:
Intel: LGA 1700/1200/1156/1155/1151/1150
AMD: AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
- Delivers a high airflow while keeping its noise minimal
- 3.62" fan(s) is fully compatible with standard processors
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| CPU / Processor | |
|---|---|
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible AMD Socket | FM1 |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 3.62" |
| Fan Width | 3.62" |
| Fan Height | 0.98" |
| General Features | |
|---|---|
| Cooler Type | Air |
| Heatsink Material | Copper |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Maximum Air Pressure | 1.02mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Number of Fans | 1 |
| Maximum Airflow | 33.12 CFM |
| Fan Life | 4.6 Year |
| Cables | |
|---|---|
| Connectors | 4 pin PWM |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 24.5 dB(A) |
