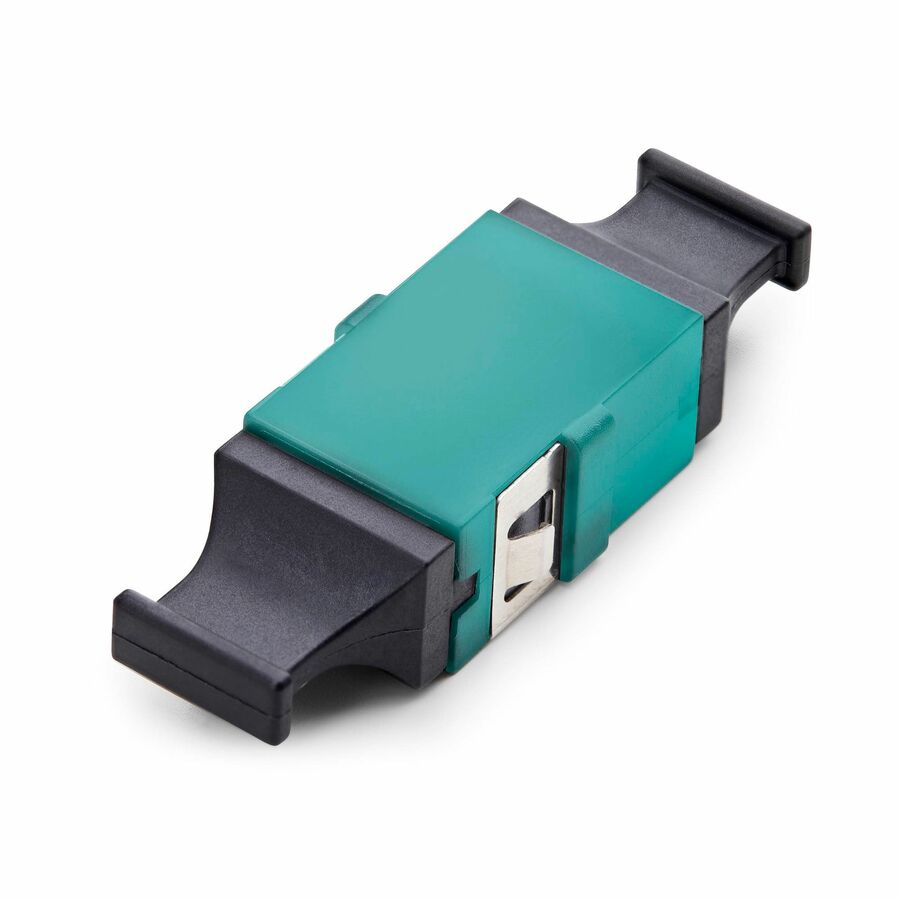

Extend a Multimode fiber connection by connecting two OM3/OM4 MPO/MTP trunk cables with this MPO/MTP Coupler. The female-to-female fiber coupler supports both male and female MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Toolless Installation for Quick Setup
The MPO/MTP Fiber Coupler supports Multimode OM3/OM4 (50/125 µm) fiber cables. The coupler features toolless setup to simplify installation into fiber patch panels and rackmount/wall enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.
Built to Last
The MPO/MTP Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance.
- MULTIMODE COMPATIBILITY: Supports OM3/OM4 Multimode MPO/MTP cables with 50/125um cores, operating at standard 850nm/1300nm VCSEL wavelengths; Best paired with MPO/MTP trunk cables with PC polished ends
- THE IT PRO'S CHOICE: Our network jacks, connectors, and couplers are tested for peak performance in structured cabling environments; Designed for reliability with consistent fit and finish; Backed by free lifetime 24/5 multi-lingual technical assistance
- EXTEND MPO/MTP CONNECTIONS: Seamlessly join two Multimode OM3/OM4 MPO/MTP fiber cables or extend multi-fiber runs in rackmount PATCH panels, wall enclosures or distribution frames; Ideal for scalable data center and telecom builds
- RELIABLE, HIGH-SPEED PERFORMANCE: Engineered for 1/10/40/100Gbps transmission with low 0.2dB insertion loss and precision mating, this coupler ensures signal integrity and exceeds TIA-568.3-D standards; Optimized for VCSEL sources
- QUICK INSTALLATION: Plug-and-play design with metal mounting tabs offers quick, secure installation in sta
| Brand | |
|---|---|
| Brand | StarTech.com |
| Appearance | |
|---|---|
| Color | Aqua |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Cables | |
|---|---|
| Connector Type on First End | MTP/MPO Network - Female |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector Gender on First End | Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Connector Gender on Second End | Female |
| Miscellaneous | |
|---|---|
| Adapter Type | Fiber Optic |
| Brand | StarTech.com |
| UPC/GTIN | 065030925228 |
| MPN | MPOSMAPCAQCOUPLER |
| Unit Count | 1 Units |
| Warranty | 1 Year |
