The Versatile PC Supports Brand New 13th Gen Intel® Processors

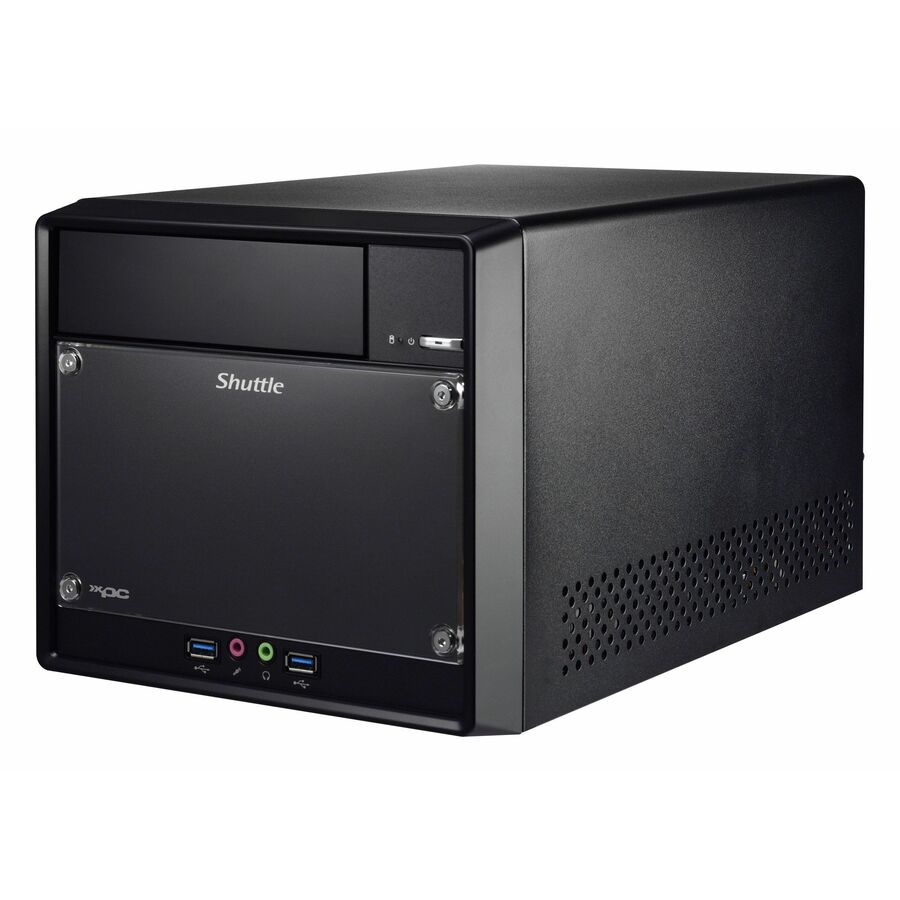

A 13-liter compact box based on the newest Intel® H610 chipset, Shuttle SH610R4 is a powerful and robust desktop PC with the LGA1700 design that supports 13th/12th Generation Intel® Core processor with Intel® Xe graphic architecture and dual-channel DDR4-3200 memory to reliable process multi-tasks and drive 4K/60 contents simultaneously in the most efficient way possible. Expansion-friendly is one of the critical features of the SH610R4, the built-in PCI-E Gen5 x16 allows upgrading graphics potential via a discrete graphics card to improve the visual output or adding video capture cards to expand into media-related applications. SH610R4 can support the installation of two 3.5-inch HDDs, one ODD bay and an M.2 SSD, users can configure them according to the storage required by the actual application. Sufficient and easily accessible connectivity is another reason to make SH610R4 the ideal choice for business, SH610R4 provides a wide range of I/O ports including a total of eight USB 3.2 and USB 2.0, a Gigabit LAN, HDIM 2.0b, dual DisplayPort and VGA interfaces. This is perfect for visual computing, content creation, control room PC, network security system, etc.
Intel® 13th Gen processor
Based on the H610 chipset, SH610R4 is designed for 13th Gen (Raptor Lake) and 12th Gen (Alder Lake) Intel® processors in the LGA1700 socket features the new hybrid processor design of Performance-cores and Efficient-cores, and supports up to 64GB (32GBx2) of DDR4-3200 memory, providing optimal computing capacity for multitasking. According to Intel, the 13th generation core processor performance improvement up to 11% in single-core and 34% in multi-core workloads. In addition, with Intel® UHD Graphics 700 series integrated, SH610R4 comes with outstanding performance to boost image processing in streaming, video recording and content creation, as well as is the potential for multi-platform AI deployment.
Triple-Display Productivity
Built-in one HDMI 2.0, two DisplayPort, and VGA outputs, the SH610R4 supports triple independent display, allowing the extent of the workspace across multiple monitors for a more comfortable productivity experience.
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Windows 11 x64 OS support provides a powerful platform to efficiently run routine applications without interruptions
- Intel Core i3 processor provides responsive multitasking for seamless use of multiple applications
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Mini PC form factor offers convenience and ease of use, ensuring a smooth user experience
- With 13 USB ports, connect or disconnect devices without shutting down the system for convenience
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
- HDMI interface connects to HD devices like gaming consoles, Blu-ray players, and laptops for true high-definition display
| Brand | |
|---|---|
| Brand | Shuttle |
| CPU / Processor | |
|---|---|
| Processor Supported | Core i9 |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Inter | Serial ATA |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 300 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 13 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini PC |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | H610 express |
| Controller Type | Serial ATA/600 |
| Manufacturer | Shuttle, Inc |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slots | 1 |
| Total Number of Expansion Slots | 2 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 2 |
| Number of External 5.25" Bays | 1 |
| Video Ports | |
|---|---|
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Number of SATA Interfaces | 3 |
| Brand | Shuttle, Inc |
| GTIN | 0887993005911 |
| MPN | SH610R4 |
| Unit Count | 1 Units |
