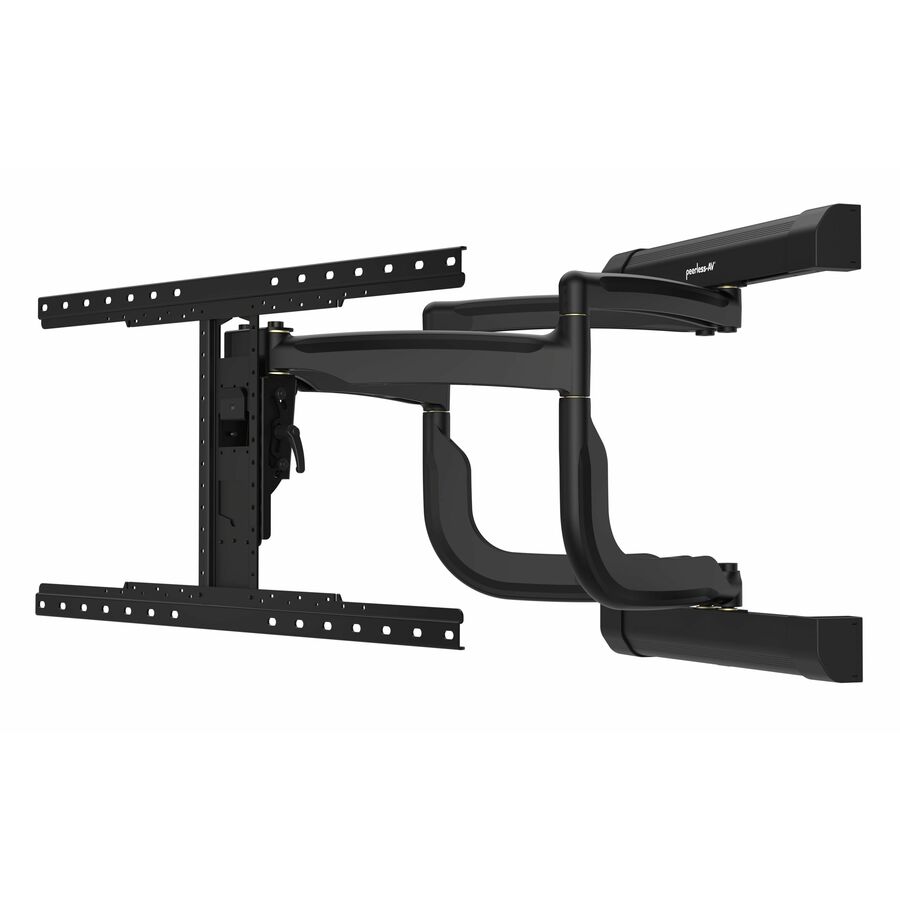

Peerless-AV's SmartMount® Articulating Wall Mount series has been redesigned to accommodate larger displays, offering enhanced versatility and mounting options. The I-shaped adaptor centers displays, regardless of the VESA® pattern on the back, which eliminates hassle and extra costs when upgrading displays. The SA771PU extends displays up to 30.5" (774mm) or retracts to 3.0" (76mm) from the wall, granting increased swivel for large displays. Compatibility with In-Wall Box accessories (IB14X9-W, IB14X14-W) offers easier access to power or AV devices. Horizontal adjustment range is ±8" to center a display on a 16" stud-spaced wall. Meanwhile, the Hook-and-Hang™ feature produces simplified installation and One-Touch™ tilt technology provides an optimal viewing angle. Integrated cable management ensures a clean and professional installation.
- Mounts to wood stud, concrete, cinder or breeze block
- Includes all necessary wall and display attachment hardware
- Stylish wall plate covers create a finished look and are easy to install and remove
- I-shaped adaptor plate helps avoid blocking connections on back of display
- Lock the display at any angle with the ratcheting handle
- Easy leveling ±5° after display installation
- Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
- ±90° of pivot allows for perfect display positioning
- Universal mount accommodates 200 x 100 to 800 x 400mm VESA® mounting patterns
- Adaptor plate can be raised or lowered to accommodate different VESA® patterns at the top, center, or bottom of the display for a perfect fit
- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes
- Extends up to 30.5" (774mm
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 90" |
| Minimum Screen Size Supported | 50" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 200 lb |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 800 x 400 |
| Mount Surface | Wood |
| Maximum Adjustable Depth | 30.50" |
| Minimum Adjustable Depth | 3" |
| Minimum Tilt Angle | 5° |
| Maximum Tilt Angle | 15° |
| Maximum Swivel Angle | 90° |
| Appearance | |
|---|---|
| Mount Function | Wall Mount |
| Finishing | Fused Epoxy |
| General Features | |
|---|---|
| Minimum Mounting Pattern | 200 x 100 |
| Durability | Scratch Resistant |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Articulating |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
