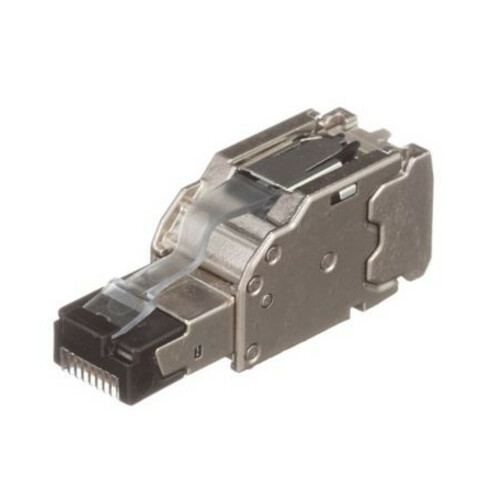

The TX6A™ Shielded Field Term RJ45 Plug is a simple-to-attach plug for field termination of 4-pair shielded twisted pair cable. Providing Category 6A performance the TX6A™ plug is also compatible with Category 6 and 5e shielded systems. The two-piece straight TX6A™ shielded plug terminates 4-pair, 22 - 26 AWG, 100 ohm shielded twisted pair cable and uses proven TG-style forward motion termination technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.
- Compact termination tools: EGPT is fold-able and lightweight
- Re-termination: Ability to re-terminate up to 20 times with no additional parts, providing convenience and cost-savings in cases when plug must be re-terminated to cable
- Category 6A, 6, and 5e compatibility: High performance capability and wide cable size range enable a single plug for all common shielded cabling systems
- TG-style termination technology: Proven electrical performance and quick installation speed from the same forward-motion termination technology used in the Panduit Mini-Com® TG Modular Jacks
- 22-26 AWG termination capable: Works with all commonly used solid and stranded shielded cabling
- Slim plug profile: Easily fits in tight port spaces or high-density port configurations
- Simple two-piece assembly: Field friendly, easier to handle during field installation, saving time and reducing termination error
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Connector Type | RJ-45 Network - Male |
| Connector Details | 1 x RJ-45 Network Male |
| Shielding | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
