Secure remote access for data centers, enterprise networks, and edge sites - with built-in 5G options.

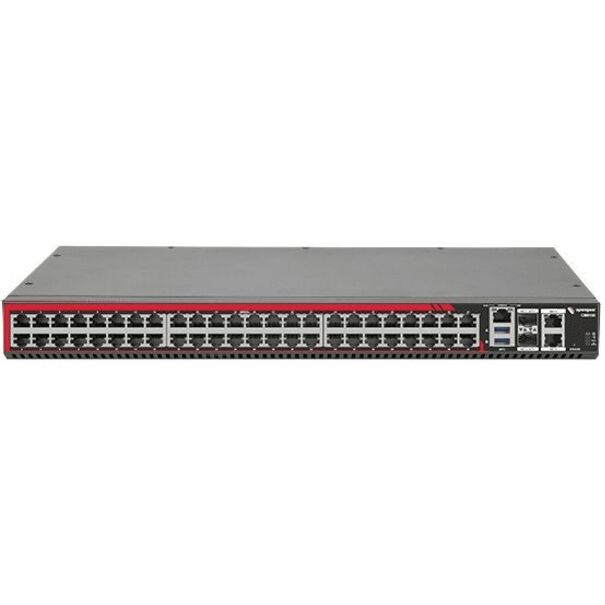

The CM8100 Series is our latest high-density console manager, built to keep critical infrastructure reachable under any condition. It offers options for 1GbE, 10GbE, and 10GbE-5G, enhancing out-of-band management capabilities. This series includes select models equipped with 5G cellular technology and supports up to 96 serial ports. With a TPM 2.0 module, it ensures enterprise-grade security. Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's Lighthouse® Software.
- 16, 32, 48, and 96 port serial console server with Smart Out-of-Band™
- REST API support for automation tools, Docker, and Python scripting
- Built-in 5G cellular modem for enhanced bandwidth, lower latency, and reliability
- Hardware-based TPM 2.0 provides secure boot
- Dual power supplies with independent monitoring
- 10Gb SFP+ uplinks connect directly to high-speed networks in select models
- Port auto-discovery simplifies configuration of serial settings and port labels
- Eliminates the need for serial adapters with selectable software serial ports in select models
- All appliances ship with two C14 power cables standard
| Brand | |
|---|---|
| Brand | Opengear |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | ARM |
| Processor Speed | 1.60 MHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 1.95 GB |
| Memory Technology | DDR4 SDRAM |
| Power & Battery | |
|---|---|
| Plug/Connector Type | IEC 60320 C13 |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired/Wireless |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Maximum Height Adjustment (Above) | 10.5" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Manufacturer | Opengear |
| Product Condition | New |
| Device Type | Console Server |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Misc Ports | |
|---|---|
| Management Port | Yes |
| Number of Serial Ports | 48 |
| Number of Serial Ports (External) | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 41°F (5°C) |
| Brand | Opengear |
| UPC/GTIN | 843295106749 |
| MPN | CM8148-10G-C |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
