The CM8100 series is Opengear's latest console manager, specifically designed for data centers, enterprise networks, and edge locations. It offers options for 1GbE, 10GbE, and 10GbE-5G, enhancing out-of-band management capabilities. This series includes select models equipped with 5G cellular technology and supports up to 96 serial ports. With a TPM 2.0 module, it ensures enterprise-grade security.
Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's Lighthouse® Software.
- 16, 32, 48, and 96 port serial console server with Smart Out-of-Band™
- REST API support for automation tools, Docker, and Python scripting
- 5G cellular modem for enhanced bandwidth, lower latency, and reliability
- Hardware-based TPM 2.0 provides secure boot
- Dual power supplies with independent monitoring
- 10Gb SFP+ uplinks connect directly to high-speed networks in select models
- Port auto-discovery simplifies configuration of serial settings and port labels
- Eliminates the need for serial adapters with selectable software serial ports in select models
- All appliances now ship with two C14 power cables standard
| Brand | |
|---|---|
| Brand | Opengear |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | ARM |
| Processor Speed | 1.60 MHz |
| Memory / RAM | |
|---|---|
| Standard Memory | 1.95 GB |
| Memory Technology | DDR4 SDRAM |
| Maximum Memory Supported | 32 GB |
| Power & Battery | |
|---|---|
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Keyboard/Keypad Weight (Approximate) | 9.92 lb |
| Maximum Height Adjustment (Above) | 9.3" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Manufacturer | Opengear |
| Device Type | Console Server |
| Misc Ports | |
|---|---|
| Management Port | Yes |
| Number of Serial Ports | 48 |
| Number of Serial Ports (External) | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 41°F (5°C) |
| Brand | Opengear |
| UPC/GTIN | 843295106695 |
| MPN | CM8148 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

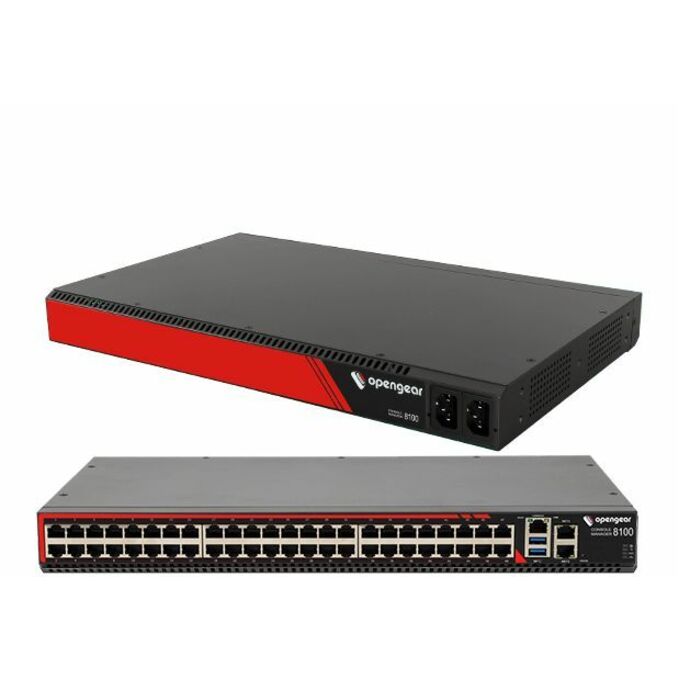

Opengear CM8100 CM8148 Console Server - 1.95 GB - DDR4 SDRAM - Twisted Pair - 2 x Network (RJ-45) - 2 x USB - 48 x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - Management Port - Rack-mountable
