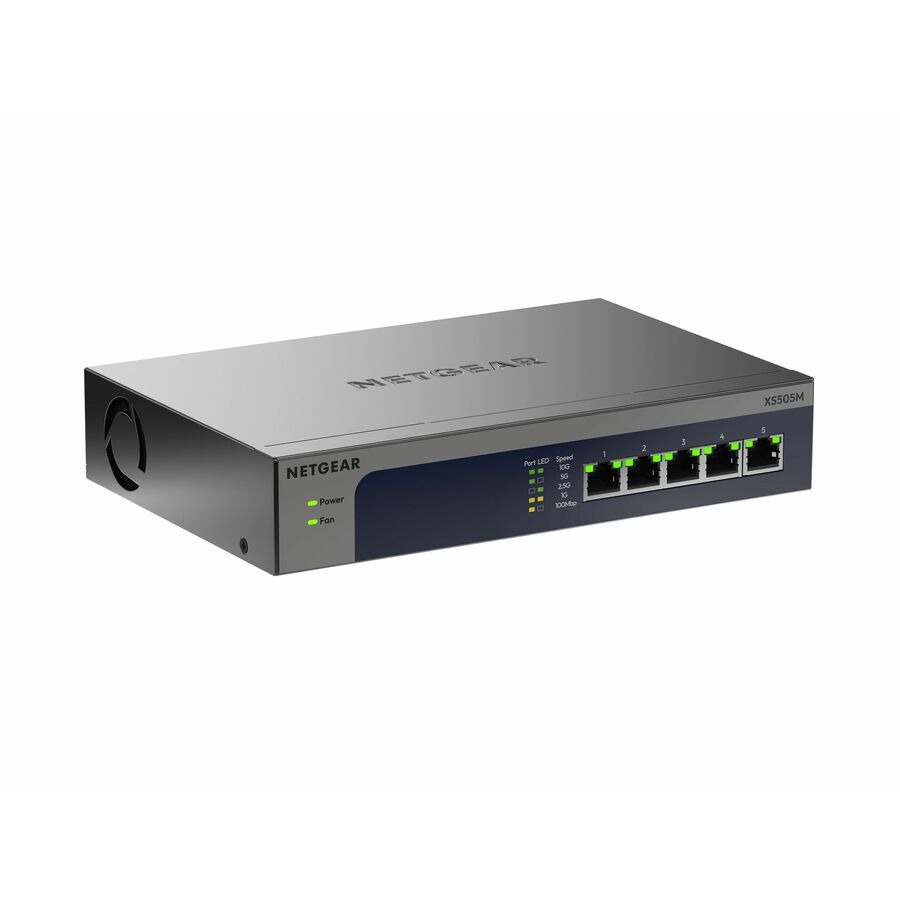

The XS505Mv2 and XS508Mv2 remove the 1G bottleneck for enterprise servers, storage, and high-density access points across every port, at every site, with nothing to configure
Delivering 100 Mbps to 10G auto-sensing on every port, these unmanaged Enterprise switches give servers, NAS units, and WiFi 6E/7 access points the full speed they support from the moment you plug in
Rated to 50°C and backed by a limited lifetime warranty with 90 days of complimentary 24/7 support, the XS505Mv2 and XS508Mv2 are built to run reliably in the warm wiring closets and equipment rooms where enterprise infrastructure lives.
Highlights | 10G on every port
Each port delivers up to 10G and steps down through 5G, 2.5G, and 1G automatically. Servers, NAS units, and high-density WiFi 6E/7 access points all connect at full speed with nothing to configure.
Rated to 50°C for hot equipment rooms
A 0°C to 50°C operating range and all-metal enclosure keep the switch running in the closets and server rooms. Fewer thermal failures means fewer emergency truck rolls.
Quiet, reliable design
A single, low-noise fan keeps the switch cool and quiet. Built to run wherever the infrastructure needs it without adding disruptive noise to the equipment room.
Fast, repeatable multi-site deployment
Plug-and-play operation lets a team stand up identical hardware at every branch in minutes, no on-site specialists needed. Multi-site rollouts stay on schedule, and standardized hardware simplifies support.
Multi-gig auto-sensing on every port
Every port automatically negotiates 1G, 2.5G, 5G, or 10G. New and legacy infrastructure run side by side without a single reconfiguration protecting existing cabling investments while upgrading capacity.
Limited lifetime warranty
A limited lifetime hardware warranty gives IT teams and MSP partners a predictable, multi-year support window they can quote with confidence - and 90 days of complimentary 24/7 support from day one.
- Ethernet Switch supports increased network bandwidth availability through data switching
- Set up a basic wired network using 5 networking ports to connect multiple compatible devices efficiently
- Fast Ethernet technology supports extending network connections across defined work areas
- Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
- Desktop form factor supports placement outside dedicated wiring enclosures for accessible device positioning
- Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
- AC power source supports continued device operation during power availability challenges
| Brand | |
|---|---|
| Brand | Netgear |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Operating Power Consumption | 26 W |
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Switching Capacity | 12.50 GB/s |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | Enclosure |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Frequency | 60 Hz |
| Mean Time Between Failures (MTBF) | 944360 Hour |
| Manufacturer | Netgear, Inc |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x 10 Gigabit Ethernet Auto-Sensing Network Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Brand | Netgear, Inc |
| UPC/GTIN | 606449176445 |
| MPN | XS505M-200NAS |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
