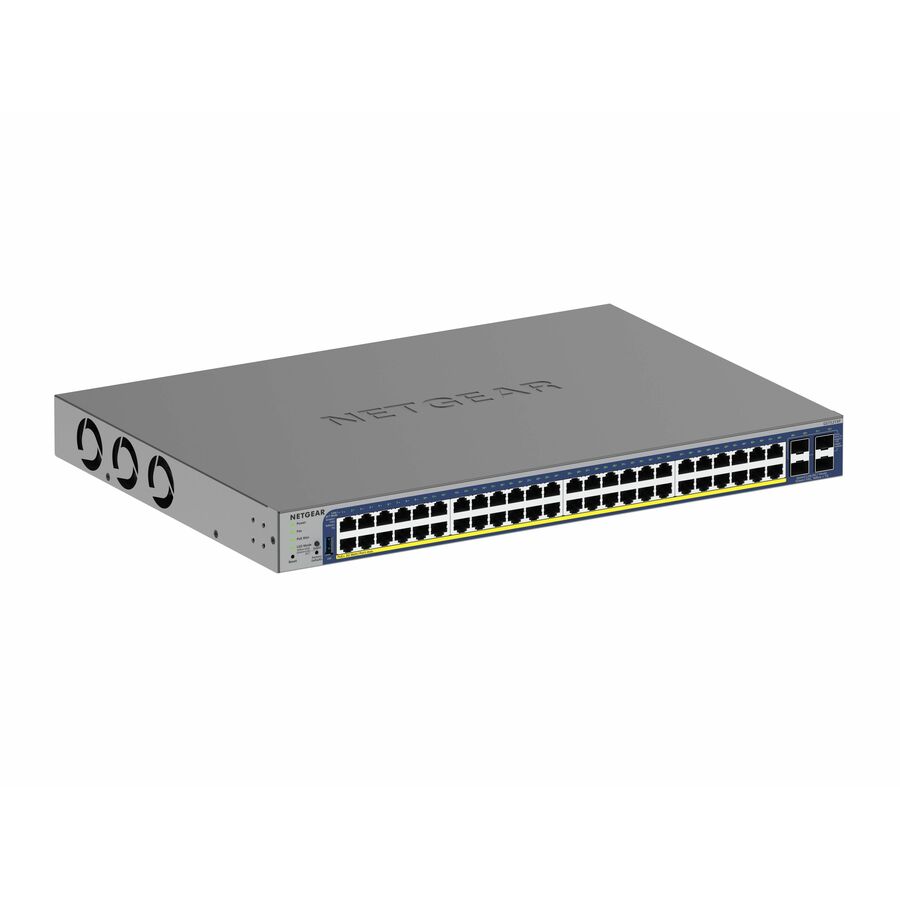

Netgear Business GS752TXUPv3 Ethernet Switch

1,376.49 1,376.49
1,376.49

1,376.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Power Supplies Inst
  • Network Technology
  • Manageable
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Uplink Port
  • Number of SFP+ Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • MTBF
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Powerful 24-port and 48-port Gigabit switches with 4 dedicated 10G SFP+ uplinks and Remote/Cloud Management option - Select your new network engine!

As a leading provider of network equipment for businesses, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.

The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation.

Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24- port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA. |

Highlights

The NETGEAR Gigabit Ethernet Switches with 4 SFP+ Ports with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.


  • Non PoE versions: 24 and 48 Gigabit Ethernet ports on GS728TXv3 and GS752TXv3.
  • PoE+ version: Full 24-port and 48-port PoE+ with 190W and 380W total PoE budget on GS728TXPv3 and GS752TXPv3.
  • PoE++ version: GS728TXUPv3 supports 8-port PoE++ (up to 60W/port) and 16-port PoE+ with a total of 420W PoE budget; GS752TXUPv3 supports 16-port PoE++ (up to 60W/port) and 32-port PoE+ with 640W total PoE budget.
  • 4 Dedicated 10G SFP+ ports, not only providing high-speed fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network
  • Quiet rack mounting operation with 26.80dBA to 37.3dBA at 25°C (77°F) ambient
  • Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
  • PoE Self-healing supported on GS728TXUPv3 and GS752TXUPv3 that allows for PoE auto-recovery of the connected power devices when they become unresponsive or stop working properly
  • Advanced VLAN and Private VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs)
Brand
Brand Netgear
Power & Battery
Number of Power Supplies Inst 1
PoE Budget 640 W
Power Source PoE++
Power Consumption 763 W
Networking & Connectivity
Network Technology 1000Base-X
Layer Supported 3
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 48
PoE (RJ-45) Port Yes
Uplink Port Yes
Size / Dimensions
Form Factor Table Top
General Features
Manageable Yes
Maximum Data Transfer Rate 1.25 GB/s
MTBF 191643 Hour
Manufacturer Netgear, Inc
Expansion Slots
Total Number of Expansion Slots 4
Expansion Slot Type SFP+
Number of SFP+ Slots 4
Misc Ports
Port/Expansion Slot Details 4 x 1000/10GBASE-X Gigabit Ethernet SFP+ Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
