Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
- IGMP Plus means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage Controller manages all M4250, M4300, M4350, and M4500 switches for your AV installations
- NETGEAR Pro AV Design team to help with system design and implementation to ensure the project will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, IPMX, NDI 4/5/6, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless fai
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware.
- Ethernet Switch supports increased network bandwidth availability through data switching
- C14 Plug/Connector Type supports consistent device operation through standardized physical connectivity
- Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
- Stack port supports data communication between stacked devices within a network configuration
- Create a local wired network and connect compatible devices using 4 ports to support basic communication needs
- Built?in power supply supports internal components by providing required operating voltage
- Layer 3 support allows routing functionality that supports network scalability through structured traffic handling
- Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
- Management capability enables control over network setup and configuration according to operational requirements
- Lets you connect to the 2.5 gigabit ethernet Ethernet technology to s
| Brand | |
|---|---|
| Brand | Netgear |
| Power & Battery | |
|---|---|
| Plug/Connector Type | C14 |
| Maximum Operating Power Consumption | 115.50 W |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Maximum Height Adjustment (Above) | 1.7" |
| Appearance | |
|---|---|
| Color | Not Specified |
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Mean Time Between Failures (MTBF) | 795845 Hour |
| Manufacturer | Netgear, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 28 |
| Expansion Slot Type | SFP+ |
| Number of SFP Slots | 24 |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Stack Port | Yes |
| Port/Expansion Slot Details | 4 x 10GBASE-T Gigabit Ethernet RJ-45/SFP Combo Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Brand | Netgear, Inc |
| UPC/GTIN | 606449172881 |
| MPN | MSM4328F-100NES |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

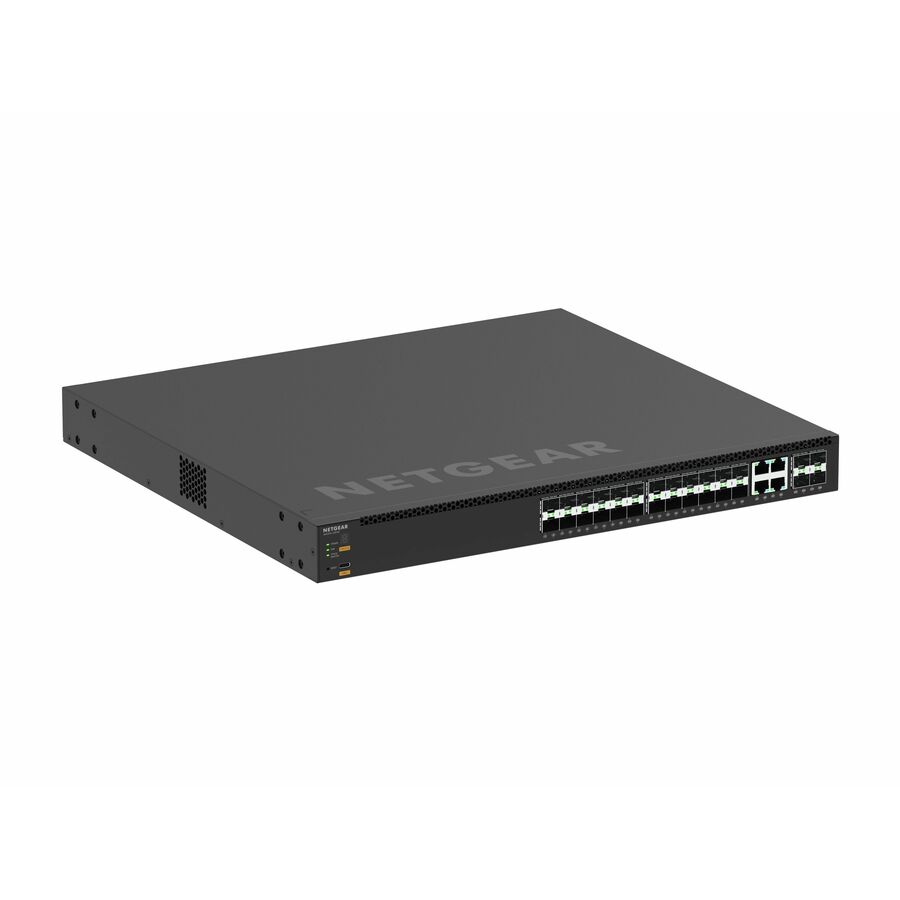

Netgear AV Line M4350-24F4X Ethernet Switch
