Elevate your business above the 1Gb barrier
As a leading provider of network equipment, NETGEAR® Business understands the importance of providing a great choice of speed and power to support core business needs. With the growth of network speed, virtualization, and cloud-based applications like VoIP, video streaming, and IP surveillance, businesses in all sectors must keep up to ensure success. Also, the increase in speeds for WiFi 6 and WiFi 6E access points now require faster speeds in the network.

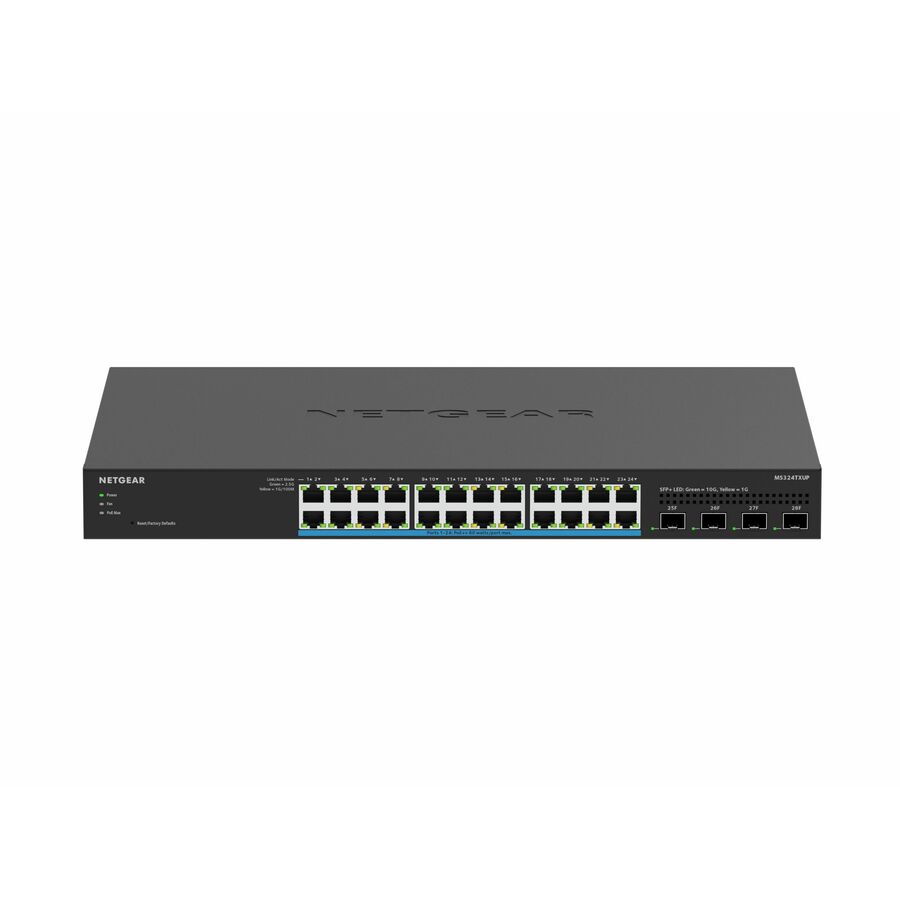

The MS324TXUP 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports joins the NETGEAR Smart Switch family, adding Multi-Gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support. NETGEAR Pro WiFi Access Points and other PoE devices with multi-gig capabilities are perfect for use with the MS324TXUP.
NETGEAR Smart Switches offer powerful L2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely esigned for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.
Furthermore, for 2.5G speeds there is no requirement to upgrade your cabling beyond Cat5E, allowing for higher speeds without additional cabling upgrade costs.
The MS324TXUP switch supports NETGEAR Insight Cloud management, allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser.
- Ethernet Switch supports network continuity by maintaining data transmission during operation
- Allows connection between standard Ethernet ports to support network extension without changing existing cabling
- Features 24 networking ports to support the connection requirements of larger workgroups using wired infrastructure
- Built?in power supply supports internal components by providing required operating voltage
- Layer 4 support enables traffic classification and bandwidth control for environments with multiple tenant networks
- Desktop form factor supports placement outside dedicated wiring enclosures for accessible device positioning
- Management functionality enables centralized control to support efficient configuration and operational oversight
- 10 Gigabit Ethernet supports increased network throughput for business network connectivity
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
| Brand | |
|---|---|
| Brand | Netgear |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 1 |
| Number of Power Supplies Inst | 1 |
| Number of Power Supplies Installed | 1 |
| Number of Power Supplies Supported | 1 |
| PoE Budget | 720 W |
| Power Source | Power Supply |
| Power Consumption | 765 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Switch Management Type | Smart Managed |
| Layer Supported | 4 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Table Top |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Netgear, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Brand | Netgear, Inc |
| UPC/GTIN | 606449165258 |
| MPN | MS324TXUP-100NAS |
| Unit Count | 1 Units |
| Warranty | 5 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
| Customer Reviews | 1.0 (1) |
