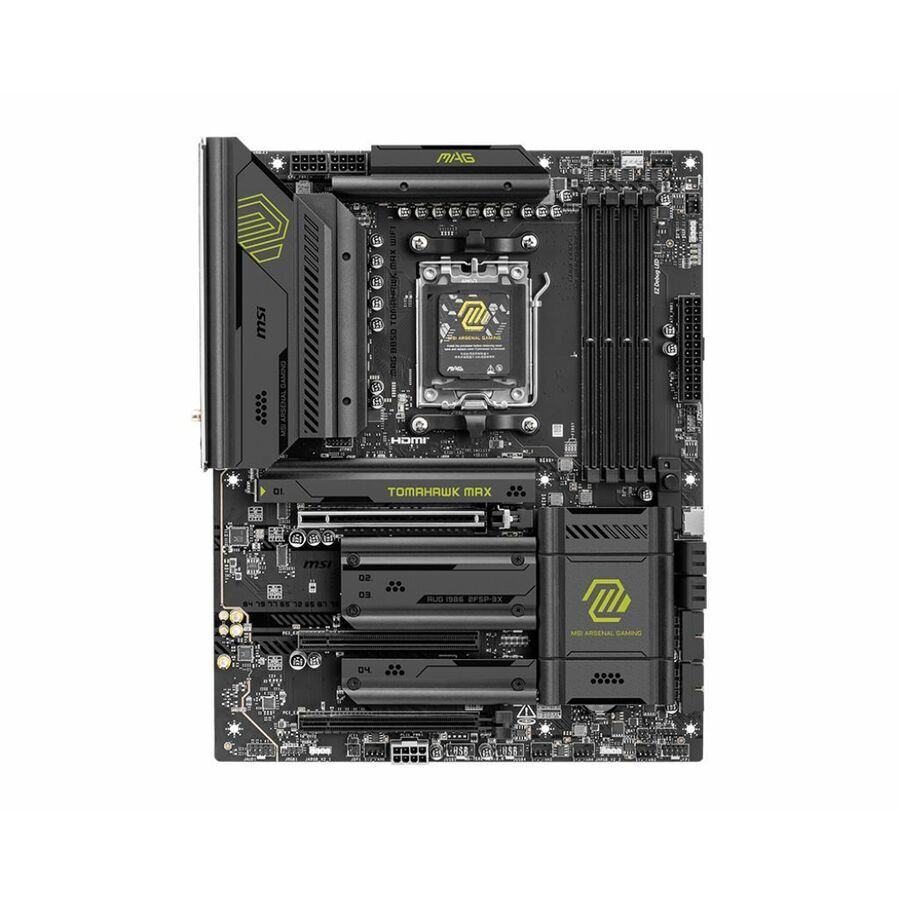

MAG B850 TOMAHAWK MAX WIFI
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MAG MSI ARSENAL GAMING
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
READY FOR Ai PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Al Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr Al Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
Al Boost
is an MSI exclusive feature. It overclocks NPU to improve higher Al performance.
- EZ PCIe Release A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card
- EZ M.2 Shield Frozr II The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Quadruple M.2 Connectors Onboard 4x M.2 connectors with one Lightning Gen 5 solution for the maximum storage performance
- Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- 5G Network Solution Featuring premium 5G LAN to deliver better network experience.
- Wi-Fi 7 The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Core Boost With premium layout an
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 9 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | B850 |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | MSI |
| Brand Compatibility | AMD |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 3 |
| Total Number of PCI Express S | 3 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 4 |
| Number of SATA Interfaces | 4 |
