PRO SERIES
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

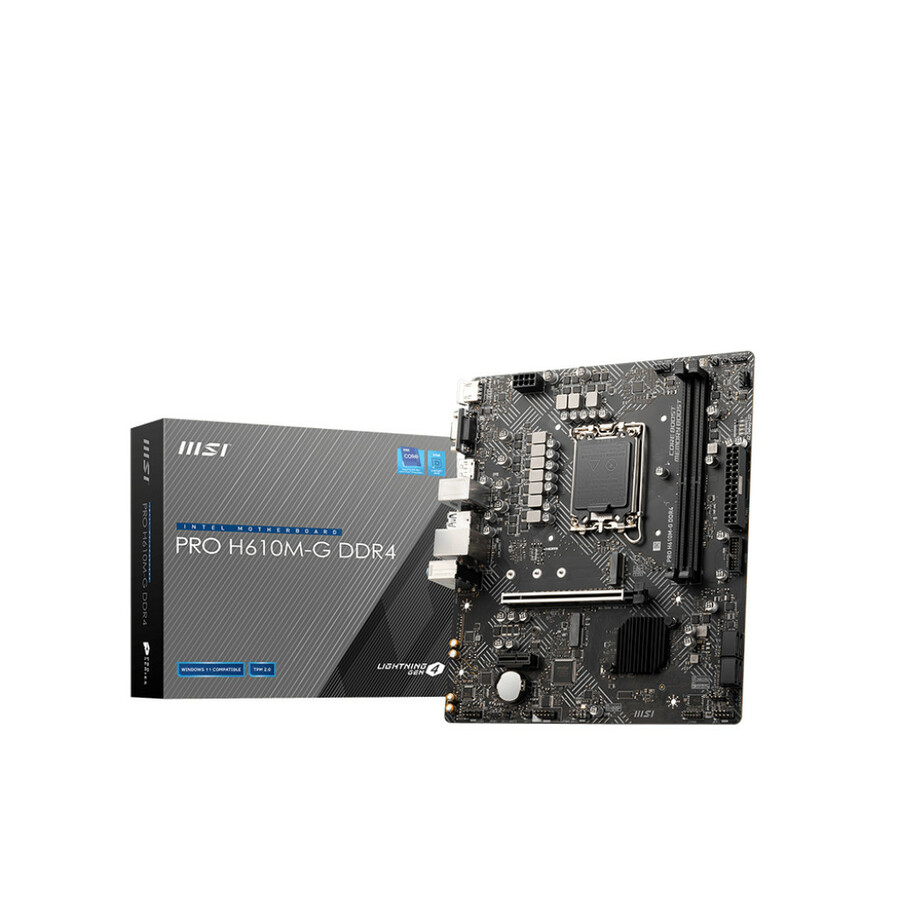

PRO H610M-G DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
- Lightning Gen4 Solution:The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed
- Memory Boost:Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
- Core Boost :With premium layout and fully digital power design to support more cores and provide better performance.
- EZ Debug LED:Easiest way to troubleshoot.
- Frozr AI Cooling:Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Audio Boost:Reward your ears with studio grade sound quality for the most immersive audio experience.
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Supported | Core |
| Total Processor Supported | 1 |
| Processor Generation Supported | 13th Gen |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 3200 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.2 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 2 |
| Total Number of Onboard USB P | 4 |
| Number of Onboard USB 2.0 Por | 2 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | MSI |
| Brand Compatibility | Intel |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 2 |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 1 |
| Number of SATA Interfaces | 4 |
