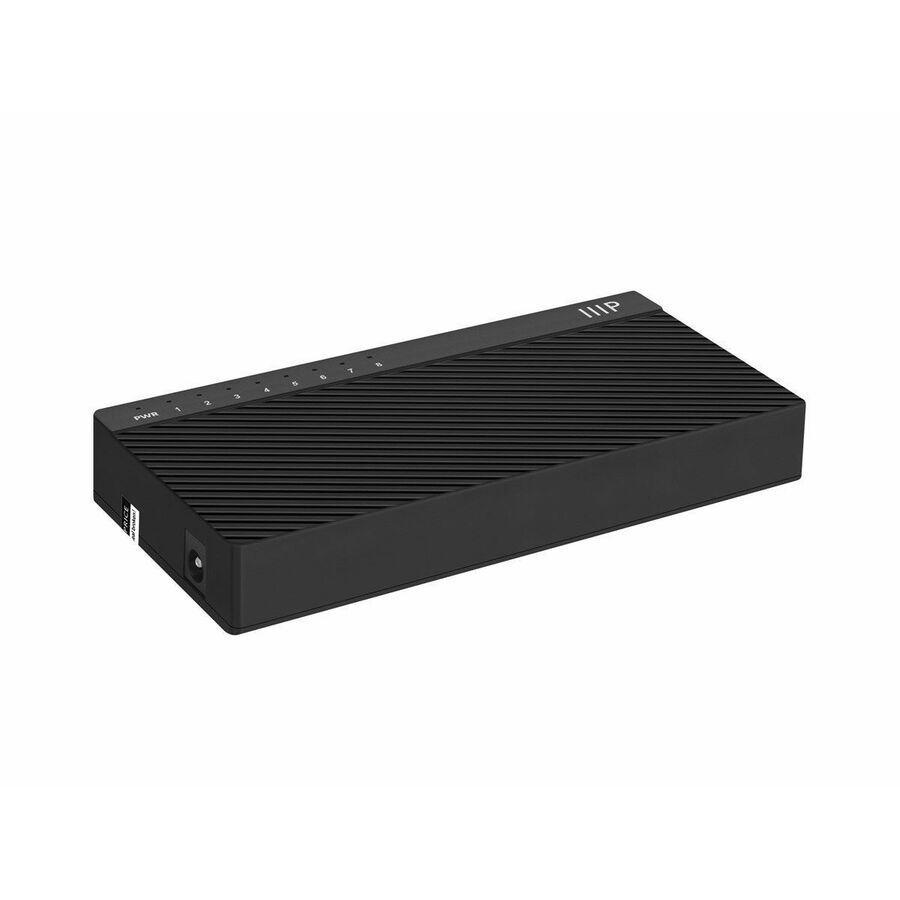

Monoprice™ | 8-Port Fast Ethernet Unmanaged Switch | Compact desktop 8-port 10/100Mbps Ethernet network switch
The Monoprice™ 8-Port Fast Ethernet Switch is a simple and reliable way to add devices to your network. Easily add eight 10/100Mbps RJ45 Ethernet ports to your existing Ethernet network. This switch provides fast and robust connectivity using Cat5e or Cat6 cabling to distances up to 328 feet (100 meters). It is a true plug and play device that requires no drivers, configuration, or setup of any kind. Its compact size allows you to place it in confined spaces, such as inside a media panel, or even attach it to a wall.
- Eight 10/100Mbps RJ45 Fast Ethernet ports
- Compact size
- Plug and play, no drivers or configuration required
- Supports Auto Negotiation and Auto MDI/MDIX
- Supports IEEE 802.3x flow control
- 2K MAC address table
ROBUST NETWORK CONNECTIVITY
Easily expand your network and take advantage of the dependability of a wired network connection. Ensure robust file transfers using Cat5e or Cat6 cabling to distances up to 328 feet (100 meters).
PLUG AND PLAY
This switch is a true plug and play device, requiring no drivers or special configuration of any kind. Simply connect it to your existing network, then plug in network-enabled devices, such as computers, laptops, A/V receivers, and smart TVs to get the most out of your home network.
COMPACT SIZE
Measuring 5.3" wide, this 8-port Fast Ethernet Switch is compact enough to place in confined spaces, such as media panels or entertainment centers, or mounted to a wall, without taking up too much space.
LED INDICATORS
The LED indicators allow you to see your network status at a glance, with simple diagnostics, such as power status and LAN activity/link status for each individual port.
SUPPORTS AUTO NEGOTIATION AND AUTO MDI/MDX
This switch supports Auto Negotiation, allowing it to set the optimal duplex mode and speed to communicate with each connected device. The Auto MDI/MDIX feature means you don't need to worry about using special crossover cables.
- Effectively increases available bandwidth on your network
- Features 8 networking ports to easily establish a local network or expand your existing one
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Compact form factor for added reliability and dependability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Monoprice |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 12.50 MB/s |
| Frequency | 60 Hz |
| Manufacturer | Monoprice, Inc |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
