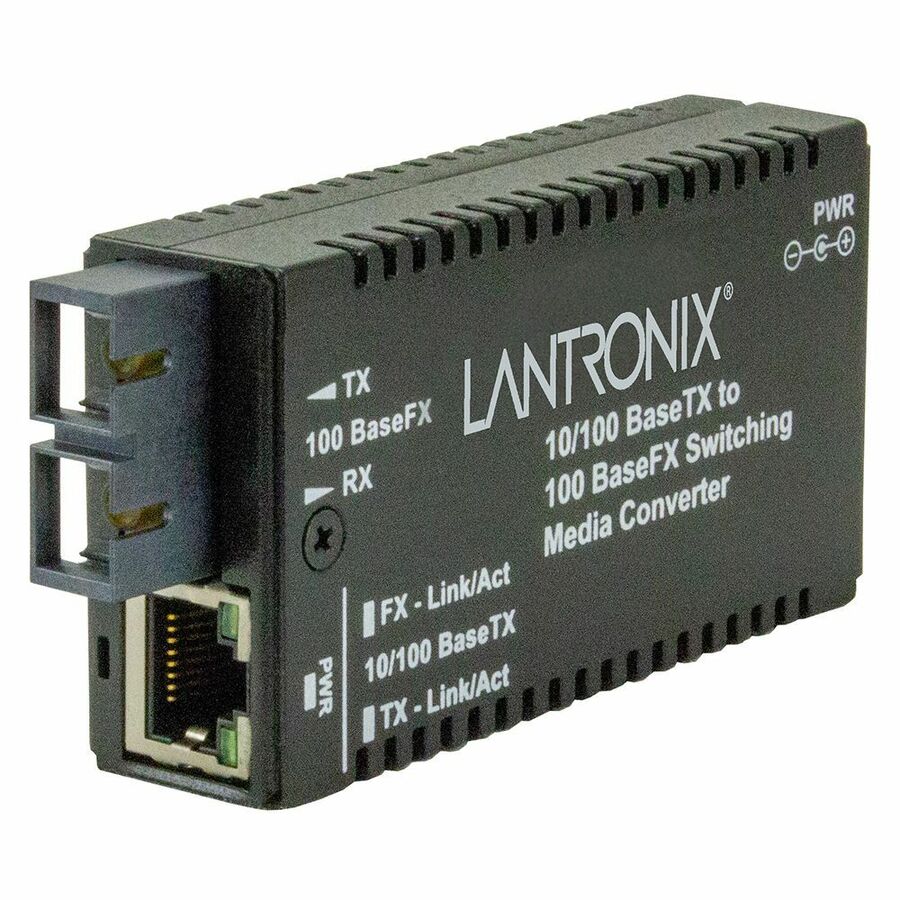

Mini Fast Ethernet Media Converter 10/100Base-TX to 100Base-FX

$ 122.99 $ 122.99
$ 122.99

$ 122.99 / Units
  • Brand
  • Color - Not Specified
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Total Number of Ports
  • Fiber Optic Cable Wavelength
  • SC Port Type
  • Number of SC Ports
  • Form Factor
  • Keyboard/Keypad Weight (Approximate)
  • Maximum Height Adjustment (Above)
  • Maximum Distance Supported
  • Maximum Operating Power Consumption
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Product Model
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

A Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber. NDAA Compliant, TAA Compliant

  • Eliminate Collision Domains
  • Connect to legacy network equipment
  • Automatic Link Restoration
  • Far-End-Fault FEF
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Unit and Port LEDs allow for quick status information
  • Auto-Negotiation
Brand
Brand Lantronix
Power & Battery
Maximum Operating Power Consumption 2.60 W
Power Source AC/DC
Networking & Connectivity
Network Technology 100Base-FX
Ethernet Port
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Size / Dimensions
Form Factor External
Keyboard/Keypad Weight (Approximate) 2 lb
Maximum Height Adjustment (Above) 0.9"
Appearance
Color Not Specified
General Features
Maximum Distance Supported 2 km
Manufacturer Lantronix, Inc
Misc Ports
Total Number of Ports 2
SC Port Type Duplex
Number of SC Ports 1
Cables
Fiber Optic Cable Wavelength 1300 nm
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
Brand Lantronix, Inc
UPC/GTIN 648177035175
MPN M/E-PSW-FX-02(SC)-NA
Unit Count 1 Units
Warranty Lifetime
Return Policy This product is eligible for 30-day returns. See our return policy for details.
Transition Networks Mini M/E-PSW-FX-02(SC) Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - 10/100Base-TX, 100Base-FX - 2 km - Wall Mountable, External
