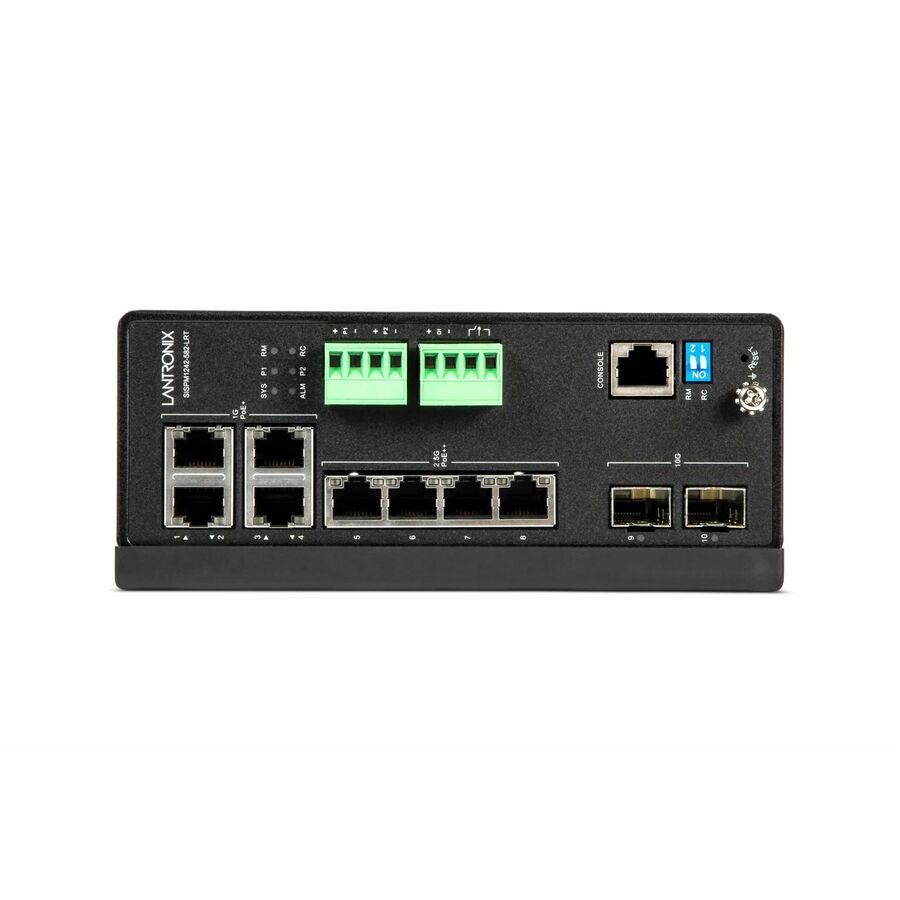

The SISPM1242-582-LRT is a managed PoE++ switch suitable for connecting and powering devices in hardened environments. It has (4) 10/100/1000 and (4) 100M/1G/2.5G PoE++ ports with (2) 1G/10G dual speed SFP+ slots. The switch can supply up to 90 Watts per port on (4) ports or 45 Watts per port on (8) ports simultaneously.
The switch includes Lantronix unique device management software (DMS). DMS offers many time-saving and cost saving features that simplify monitoring and management. It is accessible by local web manager, providing advanced configuration and management of all IP addressable devices in the network, including a graphical network topology, floor map creator, device map view, traffic monitoring, network diagnostics for troubleshooting and more.
Lantronix's hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments. This Product is TAA & NDAA Compliant.
Features Benefits:
- IEEE 802.3bt/at/af Compliant Delivers higher power more efficiently by utilizing all four pairs of structured wiring. Increases maximum PSE output power to up to 60 Watts (Type 3) or up to 90 Watts (Type 4) PoE++ power
- Supply up to 90 Watts Output Support for higher power enables new applications such as PTZ security cameras, LED lighting or digital signage
- Auto Power Reset (APR) Automatically monitors and resets powered devices when unresponsive, reducing service dispatches for simple device resets
- PoE Scheduling Provides capability to enable or disable power to specific ports during designated days and times, contributing to energy conservation and cost savings
- Up to 360 Watts PoE Budget Higher PoE power to more devices allows up to 45 Watts on all eight ports simultaneously or up to 90 Watts on four ports simultaneously
- Multi-gigabit technology, 2.5G Copper Access and 10G Fiber Uplink Includes (4) 2.5G Copper PoE ports and (2) 1G/10G SFP+ ports to support bandwidth needs of new generation highdefinition security cameras, wireless access points
- Device Management System (DMS) This unique set of value-added features and capabilities lowers overall cost, reduces downtime, and provides easier management and maintenance of the connected PoE network
