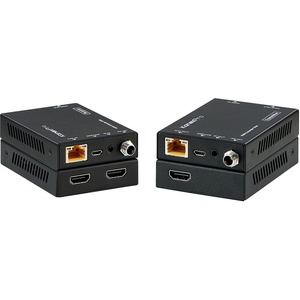

The KanexPro EXT-50M18G extender is a compact 4K /60Hz transmitter - receiver set designed to extend UHD 4K signals from your HDMI source device to a 4K display remotely located 164 feet away. For dynamic range and wide color range (gamut) HDR and 4:4:4 Chroma color sampling are one of the key features of these extenders. Featuring an HDMI loop-out, the transmitter unit supports a second local display.
Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and smart homes.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
- Compact design for easy and flexible installation
- Backed by KanexPro 3-year parts and labor warranty
- HDCP 2.2 and EDID compliant
- Dolby TrueHD & DTS Master Audio ready
- Bi-directional IR, RS-232
- HDR (High Dynamic Range) & Wider color gamut support
- HDMI loop-out
- Extend up to 50m for 4K/60 video w/ 4:4:4 Chroma
- Ultra Slim 164ft. (50m) HDMI extender
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K UHD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 5.64 oz |
| Receiver Width | 2.40" |
| Receiver Weight (Approximate) | 5.47 oz |
| Receiver Height | 0.71" |
| Receiver Depth | 3.46" |
| Transmitter Depth | 3.46" |
| Transmitter Weight (Approximate) | 5.64 oz |
| Transmitter Height | 0.71" |
| Transmitter Width | 2.40" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Maximum Operating Distance | 168 ft |
| Manufacturer | KanexPro |
| Product Condition | New |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Brand | KanexPro |
| UPC/GTIN | 813982022065 |
| MPN | EXT-50M18G |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
KanexPro 50M 4K 18Gbps HDMI Extender - 1 Input Device - 1 Output Device - 168 ft Range - 2 x Network (RJ-45) - 2 x USB - 2 x HDMI In - 1 x HDMI Out - 4K UHD - Twisted Pair - Category 6
