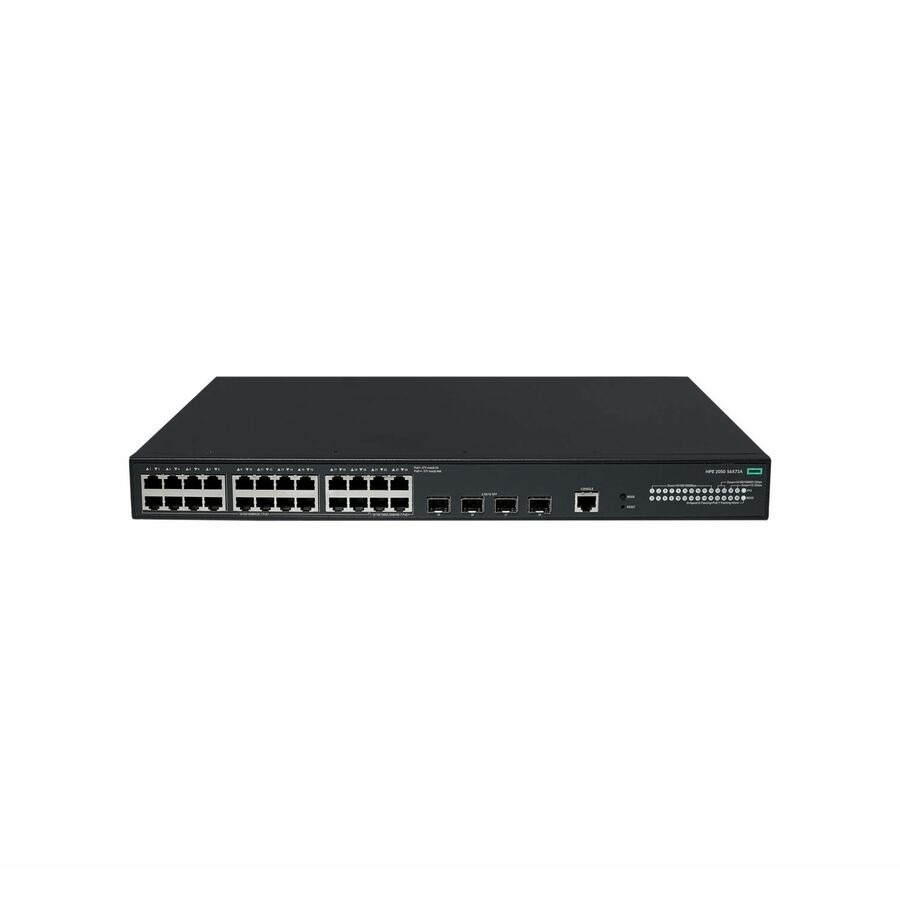

HPE Networking CW 2050 Switch Series is designed to empower your business with next-level connectivity. Whether you run a small or medium- sized business, or manage branch offices, the CW 2050 series offers seamless, secure, and high-performance networking without the complexity or high cost. This fully managed, stackable switch features advanced HPE Smart Rate 1G/2.5G ports and high-power PoE to support a wide range of devices, from computers to IP phones and wireless access points. With intuitive management through a web GUI and the Smart Management Center (SmartMC) dashboard, setting up and monitoring your network is simple-even for non-IT experts. For more advanced needs, the CW 2050 series integrates easily using CLI, SNMP, or REST API, ensuring compatibility with your existing systems. Choose the CW 2050 series for a reliable, scalable, and affordable solution that grows with your business.
Features | Enterprise class-reliable performance
The CW2050 series includes four models with 24 and 48 access ports and four builtin 1G/2.5G SFP uplinks for nonblocking performance. The 24port nonPoE model includes four HPE Smart Rate 1G/2.5G ports, and the 24port PoE model includes four PoE++ 1G/2.5G ports delivering up to 100W per port.
It supports up to 116Gbps switching capacity and up to 86Mpps performance.
Twoswitch Intelligent Resilient Fabric (IRF) stacking simplifies network management and provides high availability with uninterrupted Layer2 switching and Layer3 forwarding.
It supports Layer3 static routing and IPv6.
With industryleading 6kV serviceport surgeprotection technology, the HPE Networking CW2050 Switch Series helps reduce surgestrike risks in demanding environments such as construction sites.
Powerful PoE options for WiFi7 APs and demanding IoT devices
The 24port and 48port PoE models provide power budgets of 420W and 410W, respectively, at 35W per port, supporting WiFi7 APs, IP cameras, video phones, and other devices without the need for separate power adapters or cabling.
The 24port model includes four PoE++ ports delivering up to 100W per port for added flexibility and investment protection.
Simple and flexible management
The HPE Networking CW2050 Switch Series includes a default Web GUI and can be managed alongside other CW switches with an embedded webbased dashboard designed to simplify deployment and centralize management.
Advanced management options include HPE Intelligent Management Center (IMC), commandline interface (CLI), SNMP managers, and REST APIs for integration with existing customer dashboards.
Comprehensive security control
The CW2050 series provides multilayered access protection with granular ACLs (IPv4/IPv6, VLAN, portbased), identitydriven policies, and authentication including 802.1X, MAC, Web, RADIUS, and TACACS+, as well as Guest VLAN detection and dualNIC detection with IMC.
It supports encrypted access using SSHv2, SSL, SNMPv3, and TLS, along with rolebased privileges and audit logging.
Secure Boot verifies digital signatures to help prevent unauthorized or malicious software from loading during startup.
Threatprevention features include Control Plane Policing (DoS protection), ARP and DHCP protection, ICMP throttling, port security, and sourceport filtering.
Network isolation features include Private VLANs for usertouser traffic separation.
- Ethernet Switch supports increased network bandwidth availability through data switching
- Features 24 networking ports to support the connection requirements of larger workgroups using wired infrastructure
- Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
- Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
- Managed capability enables configuration and monitoring functions that support structured network operation
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
- Built?in power supply supports internal components by providing required operating voltage
- Allows connection between standard Ethernet ports to support network extension without changing existing cabling
- Stack port supports interconnection with other ethernet switch units within a stack
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| Power & Battery | |
|---|---|
| PoE Budget | 420 W |
| Input Voltage | 230 V AC |
| Maximum Operating Power Consumption | 23 W |
| Power Source | AC |
| Networking & Connectivity | |
|---|---|
| Switching Capacity | 14.50 GB/s |
| Network Technology | 2.5GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 320 MB/s |
| Frequency | 63 Hz |
| Manufacturer | Hewlett Packard Enterprise |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Misc Ports | |
|---|---|
| Stack Port | Yes |
| Port/Expansion Slot Details | 1 x RJ-45 Console Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Brand | Hewlett Packard Enterprise |
| UPC/GTIN | 190017823829 |
| MPN | S6X72A#ABA |
| Unit Count | 1 Units |
| Warranty | Lifetime |
