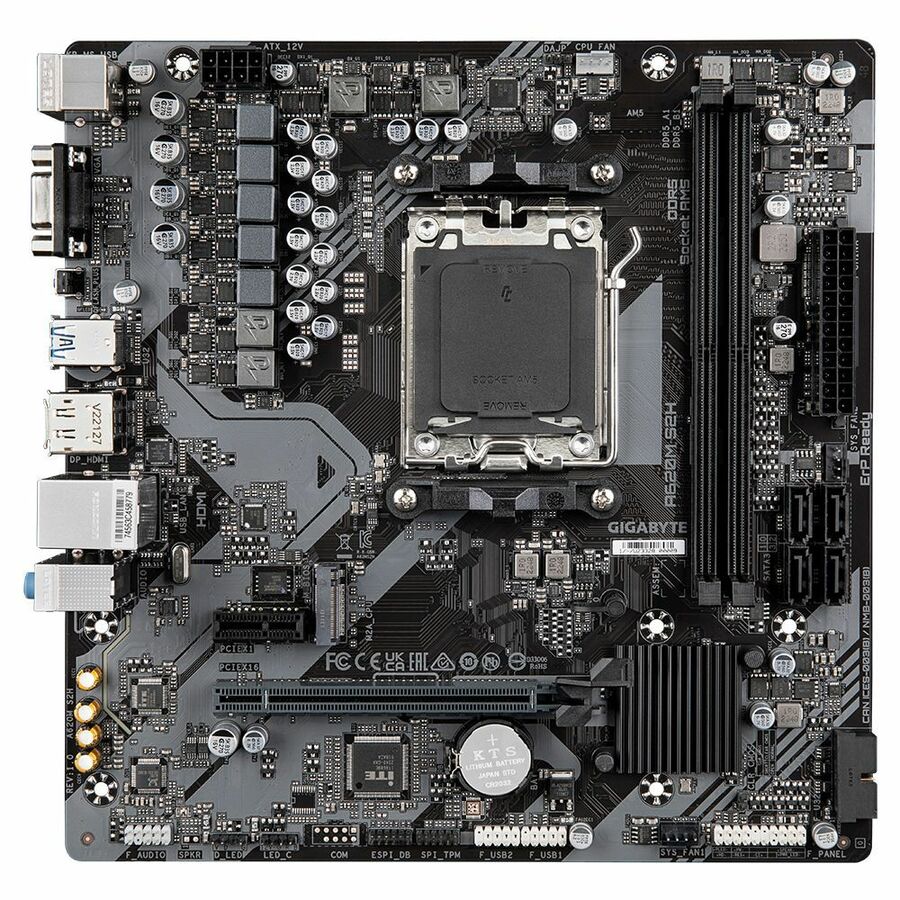

5+2+2 Phases Digital VRM Solution with Low RDS(on)MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
- AMD Socket AM5?Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance?5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5?2*SMD DIMMs with AMD EXPO™ & Intel®XMP Memory Module Support
- SuperSpeed Storage?PCIe 4.0 x4 M.2 Connector
- EZ-Latch?PCIe x16 Slot with Quick Release Design
- Fast Networks?GbE LAN
- Extended Connectivity?DP, HDMI, D-Sub
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
| Brand | |
|---|---|
| Brand | GIGABYTE Technology |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4400 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 2 |
| Maximum Memory Supported | 96 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 6 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | A620 |
| Controller Type | Serial ATA/600 |
| Manufacturer | GIGABYTE Technology, Inc |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 2 |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of SAS Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready) |
