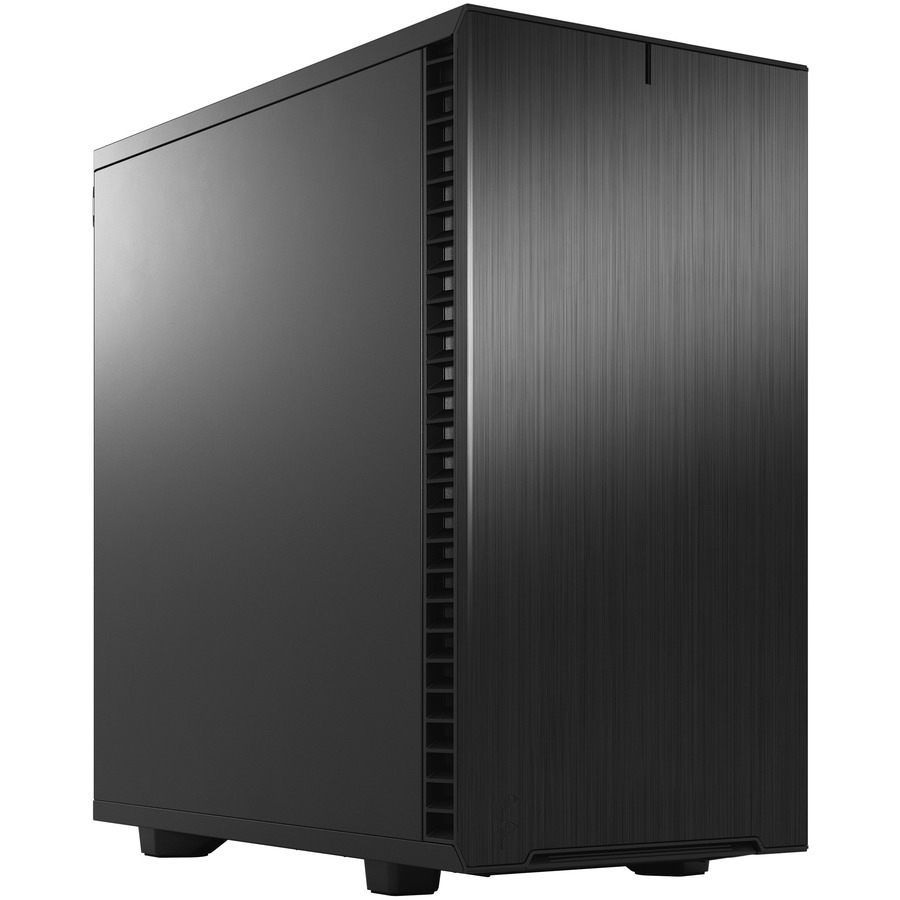

Re-defining balance.
he Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor. Its compact yet spacious interior can accommodate mATX and Mini ITX motherboards, and the option to use a GPU up to 331 mm with a 240 mm radiator in the top.
- Compact yet spacious interior accommodates mATX and Mini ITX motherboards
- Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts
- Support for 2x 2.5"/3.5" drives and up to 4x 2.5" drives (2x 2.5" brackets included)
- Top panel effortlessly swaps from closed steel panel to filtered ventilation
- Removable top fan bracket design opens up to fully expose the case interior for effortless installation and cable routing
- Silence-optimized construction with industrial sound-damped front, top, and side panels
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included)
- Five front USB ports including one USB-C with fast-charging support and speeds up to 10Gbps
- Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
| Brand | |
|---|---|
| Brand | Fractal Design |
| Power & Battery | |
|---|---|
| Power Supply Installed | No |
| Number of Power Supplies Installed | 0 |
| Number of Power Supplies Supported | 1 |
| Maximum PSU Length | 6.50" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Ports | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Maximum Height Adjustment (Above) | 16" |
| Appearance | |
|---|---|
| Color | Black Solid |
| General Features | |
|---|---|
| Motherboard Supported | Mini DTX |
| Cooler Type | Fan Cooler |
| Installed Fan Size | 4.72" |
| Maximum CPU Cooler Height | 6.57" |
| Manufacturer | Fractal Design |
| Number of Fans Supported | 7 |
| Number of Fans Installed | 2 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 9 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5"/3.5" | 2 |
| Number of Total Expansion Bays | 6 |
| Number of Internal 2.5" Bays | 4 |
| Number of Internal 2.5"/3.5" Bays | 2 |
| Number of External 5.25" Bays | 0 |
| Number of Internal 5.25" Bays | 0 |
| Brand | Fractal Design |
| UPC/GTIN | 843276102814 |
| MPN | FD-C-DEF7M-01 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
Fractal Design Define 7 Mini Computer Case - Tower - Black Solid - Steel, Brushed Aluminum - 6 x Bay - 0 - Mini ATX, Mini ITX, Mini DTX Motherboard Supported - 7 x Fan(s) Supported - 0 x External 5.25" Bay - 0 x Internal 5.25" Bay - 4 x Internal 2.5" Bay - 2 x Internal 2.5"/3.5" Bay(s) - 9x Slot(s) - 3 x USB(s) - 1 x Audio In - 1 x Audio Out - Fan Cooler
