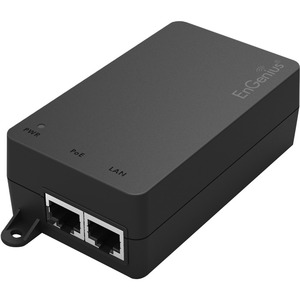

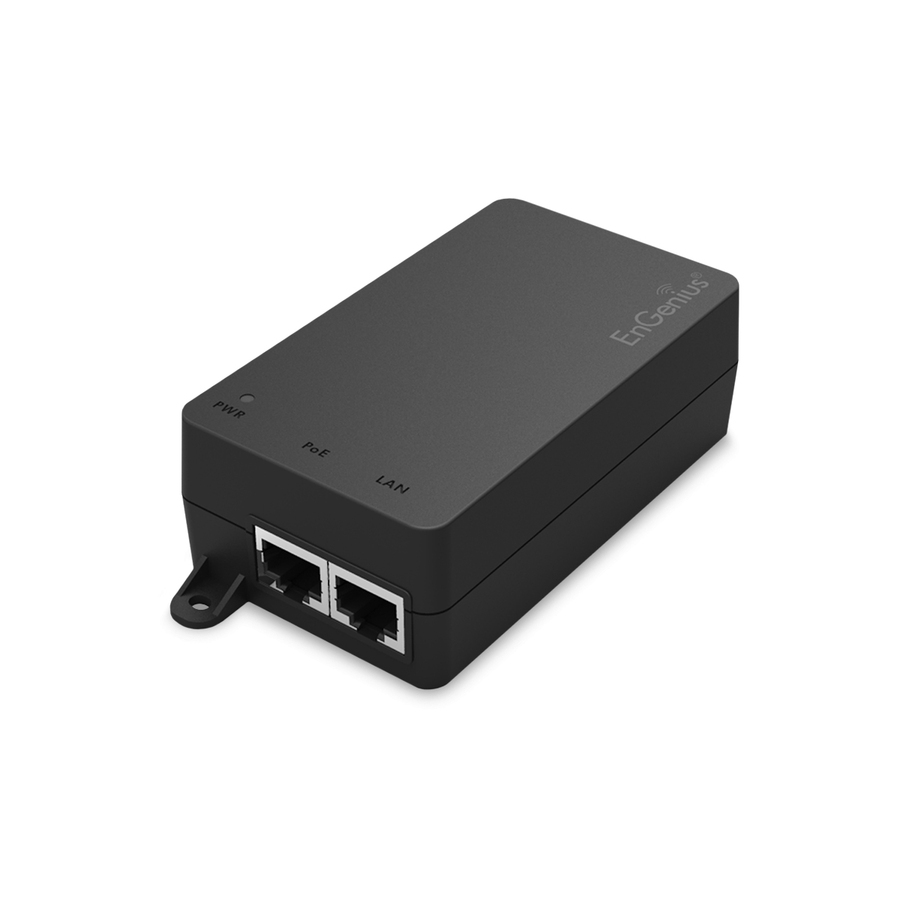

EnGenius Passive 54V Gigabit Single Port PoE Adapter

$ 32.99 $ 32.99
$ 32.99

$ 32.99 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Protection Type
  • Form Factor
  • Mount Type
  • Output Ports
  • Input Ports
  • Input Voltage
  • Maximum Input Current
  • Maximum Frequency
  • Minimum Frequency
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • Maximum Output Power
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing installation time and cost.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an Passive 54V- compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.

Outdoor Networking Facility and Low Port Density Installations
The EPA5006GP PoE adapter is Passive 54V, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for Access Points or other PoE devices. By sending maximum 54V/0.6A output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
Brand
Brand EnGenius Technologies
Power & Battery
Input Voltage 220 V AC
Maximum Input Current 800 mA
Maximum Output Power 32.80 W
Size / Dimensions
Form Factor External
Mount Type Wall Mountable
General Features
Protection Type Overload Protection
Maximum Frequency 63 Hz
Minimum Frequency 47 Hz
Manufacturer EnGenius Technologies, Inc
Misc Ports
Output Ports 1 x Gigabit Ethernet
Input Ports 1 x Gigabit Ethernet
EnGenius Passive 54V Gigabit Single Port PoE Adapter - 110 V AC, 220 V AC Input - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit Ethernet Output Port(s) - 32.80 W - Wall Mountable
