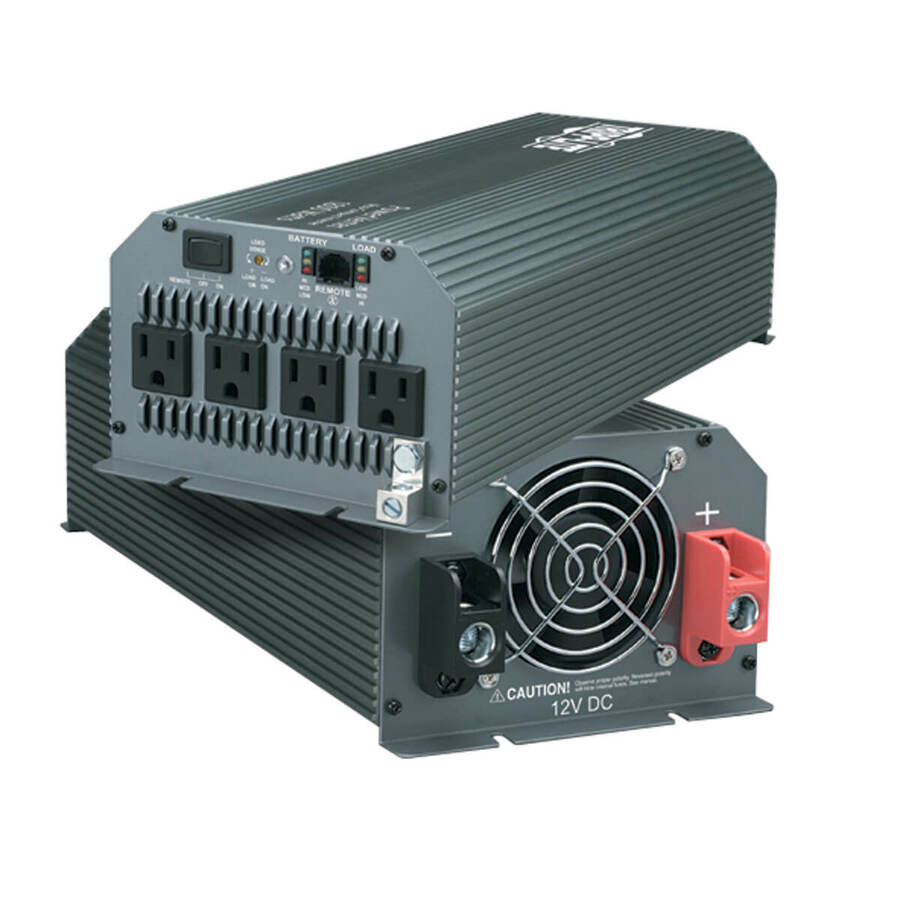

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
- Powers an entire mobile office
- 1000 watts continuous output
- 2000 watts peak output (instantaneous)
- 12V DC input; 120V AC output; 4 outlets
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacles | 4 x NEMA 5-15R |
| Input Voltage | 12 V DC |
| Output Voltage | 120 V AC |
| Continuous Power Load | 1000 W |
| Peak Power Load | 2000 W |
| Waveform Type | Pulse-width Modulated Sine Wave |
| General Features | |
|---|---|
| Maximum Frequency | 60 Hz |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
