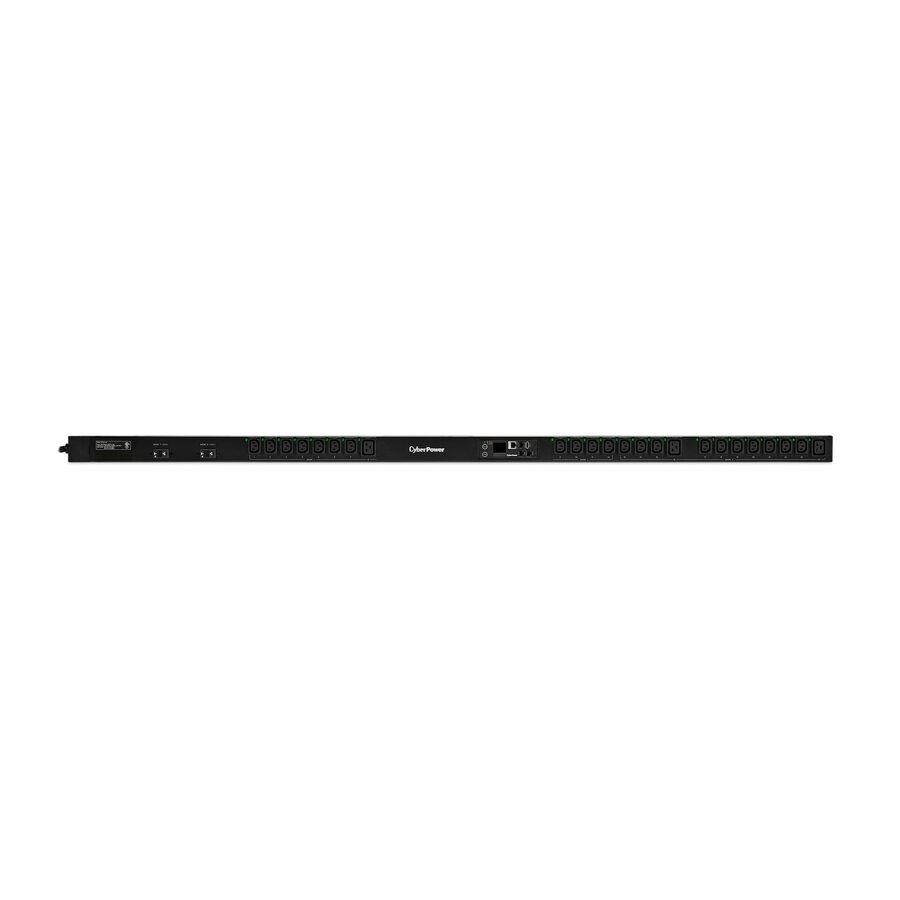

Streamline capacity planning and power management with the CyberPower PDU81105 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81105 supports inputs between 200-240V and includes 21 C13 and 3 C19 outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81105 is protected by a three-year limited warranty.
- Warranty: 3 year
- Dimensions (in): 2.2W x 65.6H x 1.89D
- Size: 0U Rackmount
- Cord length (ft.): 10
- Outlets: 21 C13, 3 C19
- Frequency: 50Hz/60Hz
- Input plug type: NEMA L6-30P
- Amps: 30A (Derated to 24A)
- Volts: 200-240 V
- Notifications: Email, SMS Text
- Phase: Single
- Monitoring Level: Metered-by-Outlet
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| PDU Type | Switched with Metered-by-Outlet |
| Remote Outlet Switching | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 21 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | NEMA L6-30P |
| Locking Receptacles | Cord Retention Tray |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 30 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Maximum Height Adjustment (Above) | 65.5" |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | CyberPower Systems, Inc |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Energy Star | No |
| Environmentally Friendly | Yes |
| UL Listed | Yes |
| Brand | CyberPower Systems, Inc |
| UPC/GTIN | 649532618637 |
| MPN | PDU81105 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
