CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU

$ 734.99 $ 734.99
$ 734.99

$ 734.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Remote Outlet Switching
  • Phase
  • Input Frequency
  • Features
  • Circuit Breaker
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Energy Star
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

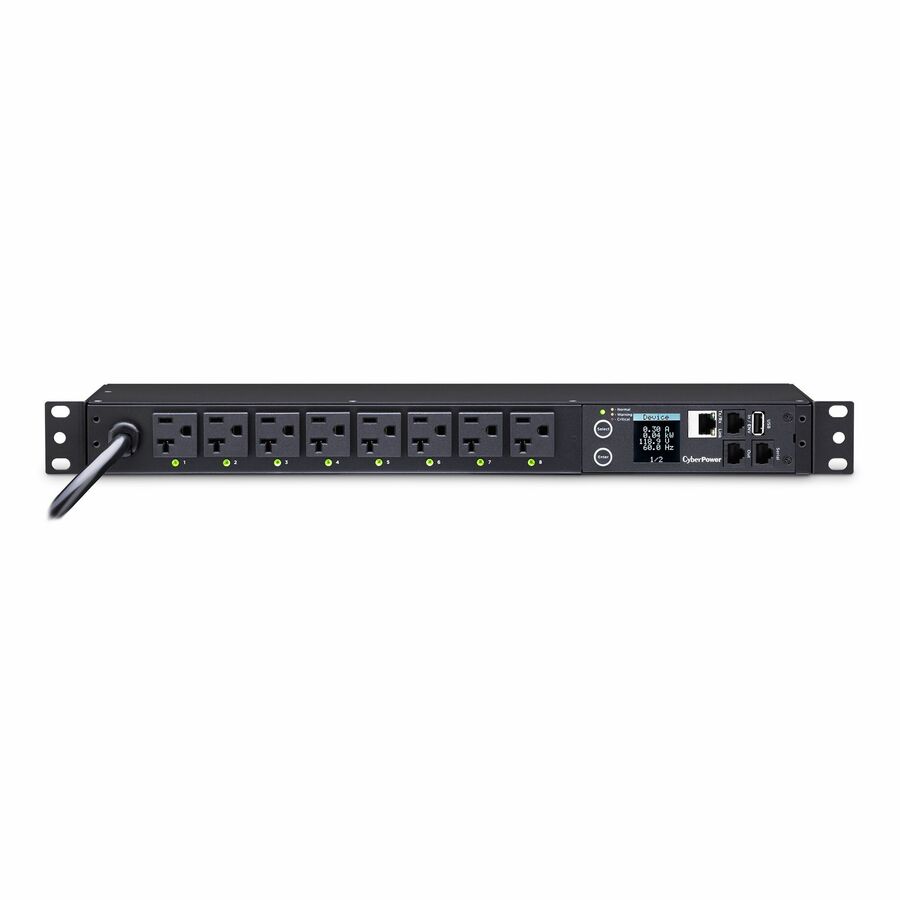

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

More from the Manufacturer

  • Size: 1U Rackmount
  • Warranty: 3 year
  • Plug type: NEMA (L)5-20P
  • Outlets: 8 NEMA 5-20R
  • Amps: 20A (Derated to 16A)
  • Volts: 100 - 120 V
  • Frequency: 50Hz/60Hz
  • Automated notifications: Email, SMS Text, and SNMP Trap
  • Phase: Single
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Switched
Remote Outlet Switching Yes
Phase Single Phase
Input Frequency 60 Hz
Circuit Breaker Yes
Receptacle Detail 8 x NEMA 5-20R
Receptacle Type NEMA 5-20R
Plug/Connector Type NEMA L5-20P
Locking Receptacles Cord Retention Tray
Input Voltage Range 100 V AC - 120 V AC
Input Voltage 120 V AC
Output Voltage 120 V AC
Output Voltage Range 100 V AC - 120 V AC
Input Current 20 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Mount Type Wall-mountable
Mounting Orientation Horizontal/Vertical
Rack Height 1U
General Features
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 12 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 149°F (65°C)
Minimum Storage Temperature 5°F (-15°C)
Energy Star No
Environmentally Friendly Yes
UL Listed Yes
