CyberPower PDU31116 Single Phase 100 - 120 VAC 15A Monitored PDU

$ 592.99 $ 592.99
$ 592.99

$ 592.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • PDU Type
  • Phase
  • Input Frequency
  • Features
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Locking Receptacles
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Storage Temperature
  • Minimum Storage Temperature
  • Maximum Operating Humidity
  • Minimum Operating Humidity
  • Output Voltage
  • Output Voltage Range
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • UL Listed
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Product Condition
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

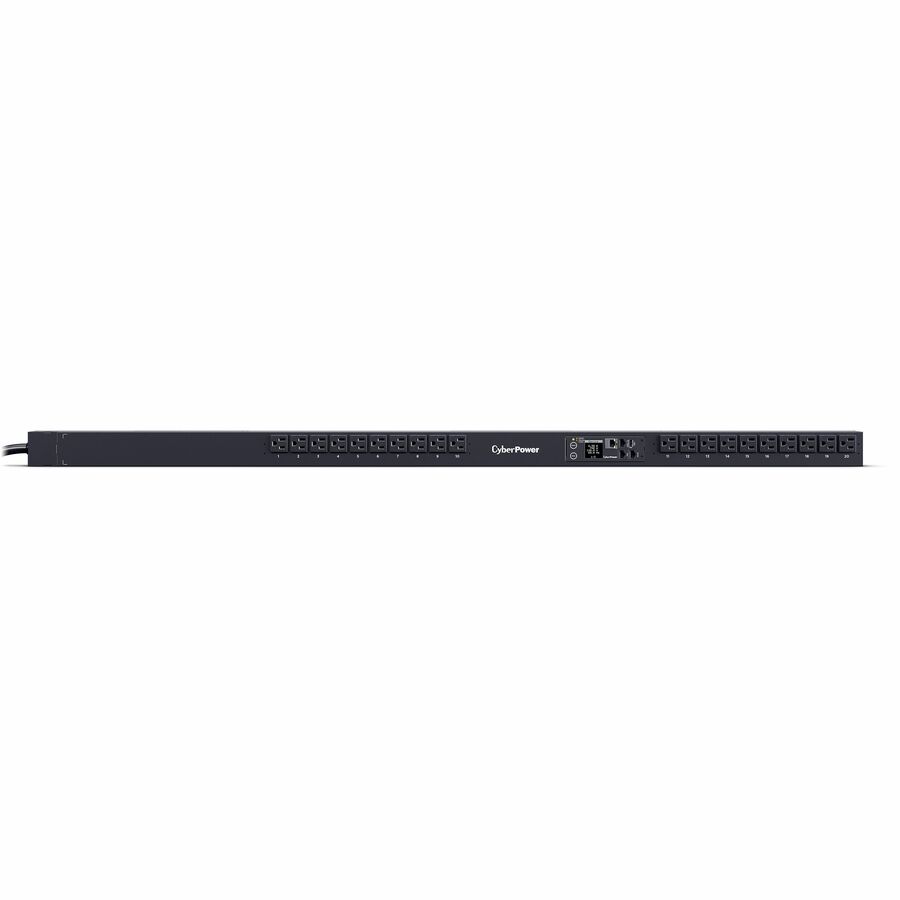

The CyberPower PDU31116, a 20-outlet, 0U rackmount monitored power distribution unit (PDU), provides 120V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. The PDU31116 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

More from the Manufacturer

  • Monitored PDU: SNMP Network Interface
  • Automated notifications: Email, SMS Text, and SNMP Trap
  • Phase: Single
  • Amps: 15A (Derated to 12A)
  • Volts: 100 - 120 V
  • Frequency: 50Hz/60Hz
  • Plug type: NEMA 5-15P
  • Outlets: 20 NEMA 5-15R
  • Size: 0U Rackmount
  • Dimensions (in.): 1.9W x 53.1H x 2.2D
  • Cord length (ft.): 10
  • Warranty: 3 year
Brand
Brand CyberPower Systems
Power & Battery
PDU Type Monitored
Phase Single Phase
Input Frequency 60 Hz
Receptacle Detail 20 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Plug/Connector Type NEMA 5-15P
Locking Receptacles Cord Retention Tray
Output Voltage 120 V AC
Output Voltage Range 100 V AC - 120 V AC
Input Current 15 A
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack
Mount Type Wall-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Manufacturer CyberPower Systems, Inc
Product Condition New
Cables
Cord Length 10 ft
Compliance & Certification
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature 32°F (0°C)
Maximum Storage Temperature 149°F (65°C)
Minimum Storage Temperature 5°F (-15°C)
Maximum Operating Humidity 95%
Minimum Operating Humidity 0%
Environmentally Friendly Yes
UL Listed Yes
CyberPower PDU31116 Single Phase 100 - 120 VAC 15A Monitored PDU - 20 Outlets, 10 ft, NEMA 5-15P, Vertical, 0U, SNMP, 3YR Warranty
