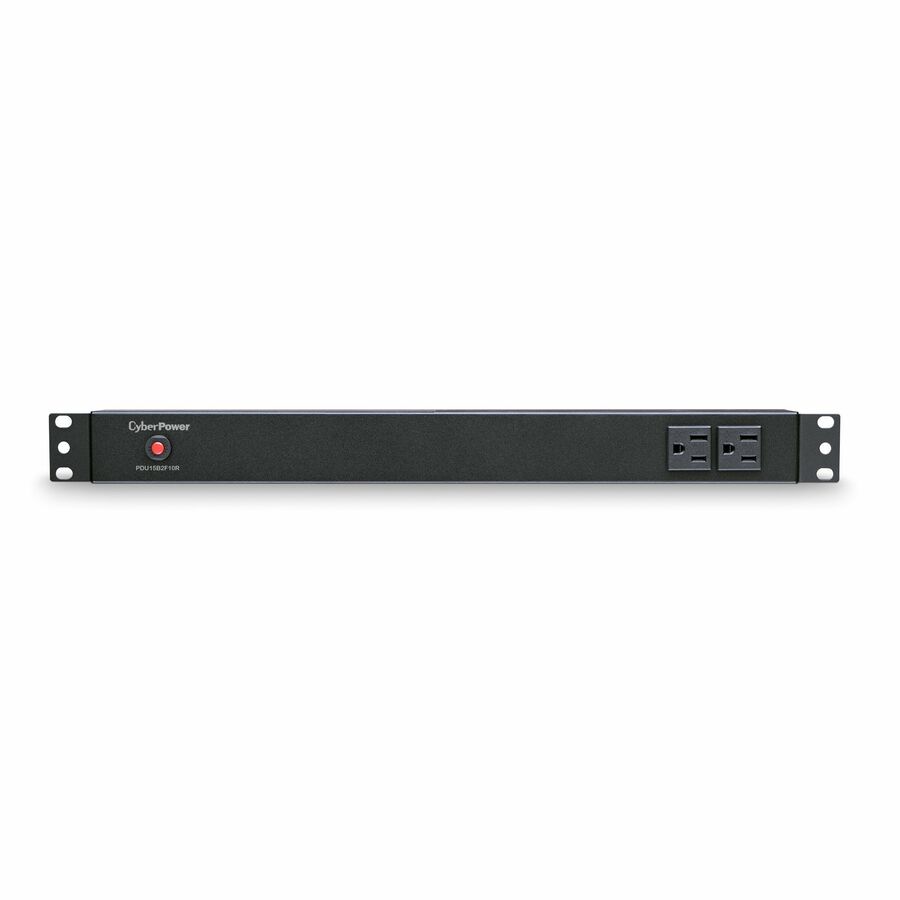

The CyberPower PDU15B2F10R, a 12-outlet (2 front, 10 rear) rackmount basic power distribution unit (PDU), provides 120V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
- Cord length (ft.): 15
- Warranty: Limited lifetime
- Size: 1U Rackmount
- Dimensions (in.): 17.5W x 1.75H x 2.25D
- Outlets: 12 NEMA 5-15R
- Volts: 100 - 125 V
- Frequency: 50Hz/60Hz
- Plug type: NEMA 5-15P
- Phase: Single
- Amps: 15A (Derated to 12A)
| Brand | |
|---|---|
| Brand | CyberPower Systems |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Phase | Single Phase |
| Receptacle Detail | 12 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Input Current | 15 A |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 1U |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | CyberPower Systems, Inc |
| Compliance & Certification | |
|---|---|
| Energy Star | No |
| Environmentally Friendly | Yes |
