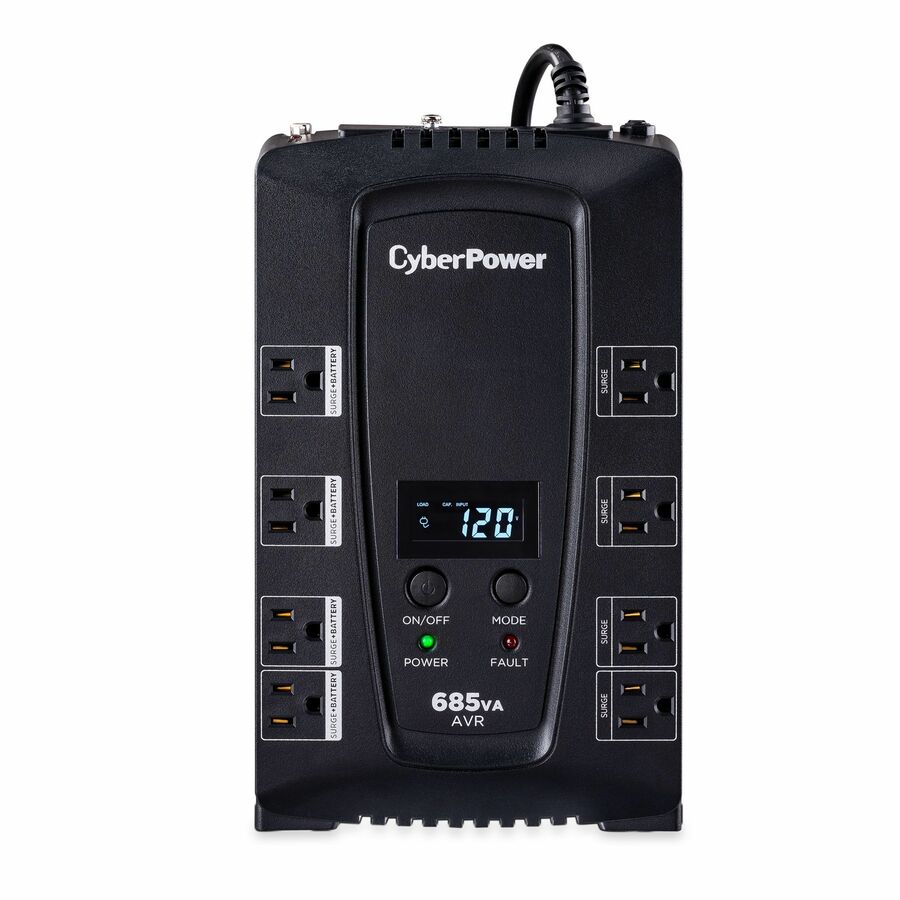

CyberPower CP685AVRLCD Intelligent LCD UPS Systems

$ 133.99 $ 133.99
$ 133.99

$ 133.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Emergency Power OFF
  • Hot Swappable
  • Dataline Protection
  • USB
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Battery Chemistry
  • Number of Batteries
  • Typical Battery Recharge Time
  • Input Voltage
  • Output Voltage
  • Software Included
  • Energy Star
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Manufacturer Website Address
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
  • Transfer Time
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

A compact UPS with line-interactive topology, the CyberPower Intelligent LCD CP685AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP685AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Features include a multifunction LCD panel to provide visibility into power conditions and UPS vitals. The CP685AVRLCD comes with a three-year warranty (including coverage of batteries) and a ,125,000 Connected Equipment Guarantee.

More from the Manufacturer

  • Capacity: 685 VA / 390 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 8 � NEMA 5-15R
  • Communication: USB
  • Management software: PowerPanel® Personal
  • ENERGY STAR® qualified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $125,000
Brand
Brand CyberPower Systems
Power & Battery
Emergency Power OFF No
Dataline Protection RJ-11
Receptacle Detail 8 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Plug/Connector Type NEMA 5-15P
Battery Chemistry Lead Acid
Number of Batteries 1
Typical Battery Recharge Time 8 Hour
Input Voltage 110 V AC
Output Voltage 120 V AC
Load Capacity (Watt) 390 W
Load Capacity (VA) 685 VA
Backup/Run Time (Full Load) 2 Minute
Backup/Run Time (Half Load) 11 Minute
Transfer Time 4 ms
USB Ports
USB Yes
Size / Dimensions
Form Factor Desktop
General Features
Hot Swappable Yes
Manufacturer CyberPower Systems, Inc
Cables
Cord Length 6 ft
Compliance & Certification
Energy Star Yes
Environmentally Friendly Yes
CyberPower CP685AVRLCD Intelligent LCD UPS Systems - 685VA/390W, 120 VAC, NEMA 5-15P, Compact, 8 Outlets, LCD, PowerPanel® Personal, $125000 CEG, 3YR Warranty
