Applications continue to grow in size and scale and, to support them, enterprises are increasingly turning to new server technologies that contain hundreds of processor cores as well as high-performance storage solutions including low-latency NVMe all-flash arrays (AFAs). NVMe can significantly increase the performance of storage area networks (SANs), making the selection of high-speed networking technology the critical element for achieving maximum system-wide performance.
Accelerate Workloads
64GFC doubles IO performance for database apps compared to 32GFC. Ideally suited to new PCI 4.0 servers, dual-port 64GFC HBAs deliver up to a 63% improvement in database query excution time versus running in a PCIe 3.0 server
Lower Operational Cost
The Emulex SAN Manager app provides centralized, in-band, visibility, management and automatic congestion management for all managed HBAs in your SAN. No server reboots are required for firmware updates, queue depth changes and optics replacements.
Protect Your Data
Fibre Channel networks are trusted to protect the world's most sensitive data. Emulex Gen 7 brings added security with Silicon Root of Trust - firmware security embedded into the hardware itself.

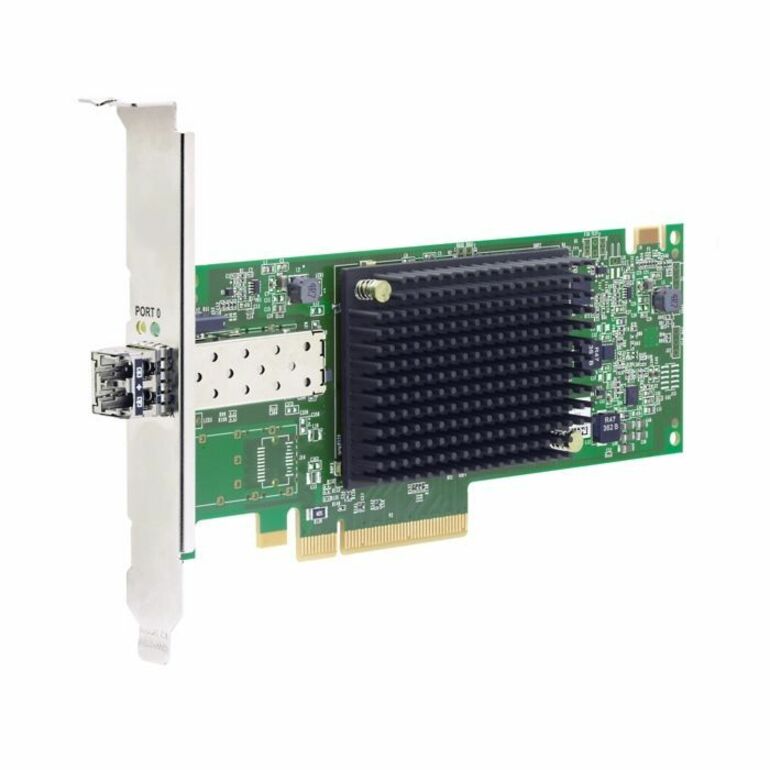

- Fiber channel host bus adapter - Provides excessive data integrity by guaranteeing overlapping protection domains on both; the control and data paths
- Can connect up to 2 fiber channel peripherals
- The PCI Express 4.0 x8 interface provides smooth data transfer and outstanding performance
- With the data speed of 64 Gbit/s, get a quick response while updating or transferring files
| Brand | |
|---|---|
| Brand | Broadcom Corporation |
| Networking & Connectivity | |
|---|---|
| Total Number of Fibre Channel | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Data Transfer Rate | 64 Gbit/s |
| Manufacturer | Broadcom Corporation |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Optic Cable Core/Claddi | 50/125 µm |
