Broadcom Dual-Port 10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0 SFF Network Adapter

$ 389.49 $ 389.49
$ 389.49

$ 389.49 / Units
  • Brand
  • Color - Not Specified
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Network Technology
  • Expansion Slot Type
  • Total Number of Ports
  • Host Interface
  • Form Factor
  • Media Type Supported
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

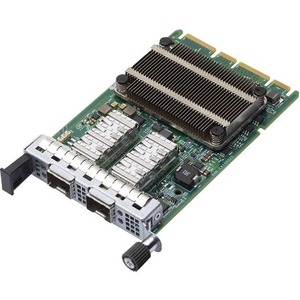

The Broadcom® BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper directattach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.

Features

  • Dual-port pluggable media interface, which can connect to a 10G SFP+ optical transceiver or a copper directattach cable.
  • Fully compliant with the SFF-8402 standard.
  • x8 PCI Express 3.0 compliant.
  • SR-IOV with up to 128 virtual functions (VFs).
  • Function-Level Reset (FLR) support.
  • TruFlow™ flow processing engine.
  • Virtual Network Termination-VXLAN, NVGRE, Geneve, GRE encap/decap.
  • vSwitch Acceleration.
  • Tunnel-aware stateless offloads.
  • DCB support - PFC, ETS, QCN, DCBx.
  • RDMA over Converged Ethernet (RoCE).
  • Network Controller Sideband Interface (NC-SI).
  • SMBus 2.0.
  • MCTP over SMBus.
  • PCIe-based UART and KCS.
  • Jumbo frames up to 9 KB.
  • Advanced congestion avoidance.
  • Multiqueue, NetQueue, and VMQ.
  • IPv4 and IPv6 offloads.
  • TCP, UDP, and IP checksum offloads.
  • Large send offload (LSO).
  • Large receive offload (LRO).
  • TCP segmentation offload (TSO).
  • Receive-side scaling (RSS).
  • Transmit-side scaling (TSS).
  • VLAN insertion/removal.
  • Interrupt coalescing.
  • Network boot-PXE, UEFI.
  • iSCSI boot.
  • Wake-on-LAN (WOL).
  • MSI and MSI-X.
  • Conforms to the OCP 3.0 Design Specification Version 1.00.
Applications
  • Dual-port 10-Gigabit Ethernet adapter for OCP systems.
  • 10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
  • Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards
  • This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
  • With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
Brand
Brand Broadcom Corporation
Networking & Connectivity
Network Technology 10GBase-X
Size / Dimensions
Form Factor Plug-in Card
Appearance
Color Not Specified
General Features
Manufacturer Broadcom Corporation
Expansion Slots
Expansion Slot Type SFP+
Misc Ports
Total Number of Ports 2
Host Interface PCI Express 3.0 x8
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Brand Broadcom Corporation
GTIN 16508610003073
MPN BCM957412N4120C
Unit Count 1 Units
