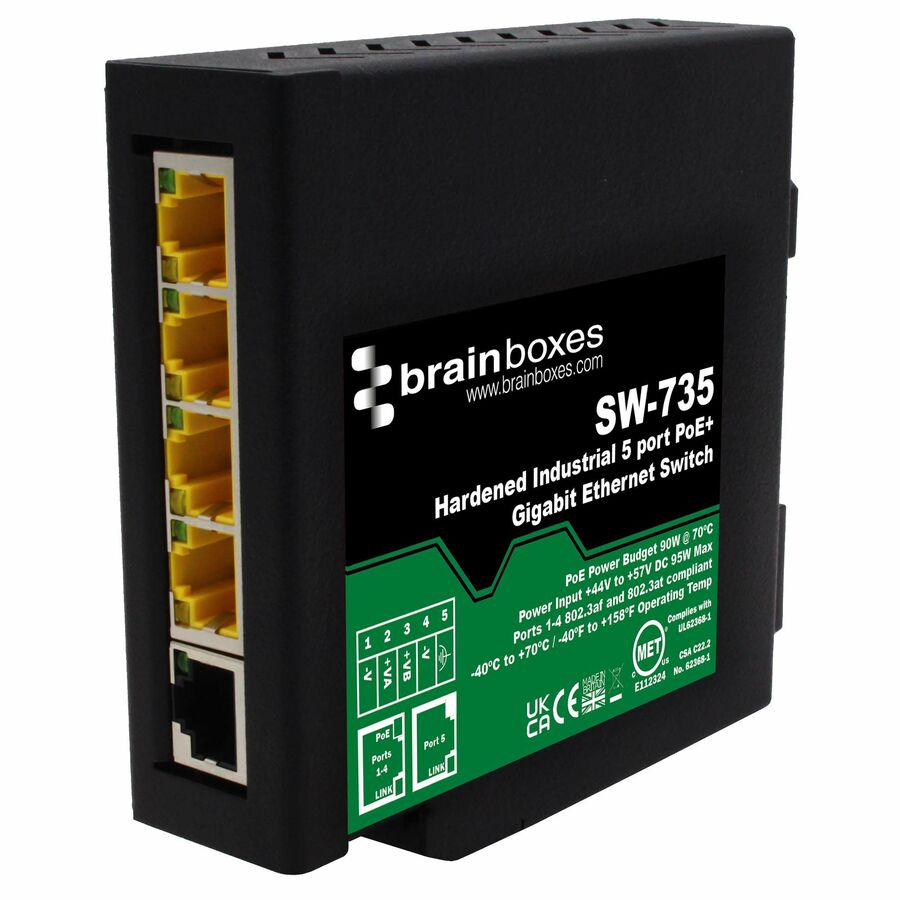

Brainboxes Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch

$ 182.99 $ 182.99
$ 182.99

$ 182.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Port/Expansion Slot Details
  • Form Factor
  • Product Material
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • TAA Compliant
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Hardened Industrial 5 Port PoE+ Fast Ethernet device.

Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.

Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.


  • Streamlined installation - electrical power and data over the same cable
  • 4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
  • High PoE power budget 90W @ 70�C between all 4 PoE ports simultaneously - efficiently deliver power to connected devices
  • Robust industrial design - operating temp -40°C to +70°C / -40°F to +158°F
  • Redundant dual power inputs +44V to +57V DC: enhances system reliability
  • Smart LED indicators: real-time status information, quick visual monitoring
Brand
Brand Brainboxes Limited
Power & Battery
PoE Budget 90 W
Input Voltage 44 V DC
Power Source DC
Power Consumption 5.50 W
Networking & Connectivity
Network Technology 10/100/1000Base-T
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 5
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Compact
General Features
Manageable No
Maximum Data Transfer Rate 128 MB/s
Manufacturer Brainboxes Limited
Misc Ports
Port/Expansion Slot Details 1 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Compliance & Certification
TAA Compliant Yes
