Switches control the fow of network traffc based on the address information in each packet. A switch learns which devices are connected to its ports (by monitoring the packets it receives), and then forwards on packets to the appropriate port only. This allows simultaneous communication across the switch, improving bandwidth.
- Lifetime Support and Lifetime Warranty
- No software required
- Wide Power Input: +5V to +30V DC
- Wall Mountable, or DIN rail mountable with optional accessory
- 5 Port Ethernet Switch
| Brand | |
|---|---|
| Brand | Brainboxes Limited |
| Power & Battery | |
|---|---|
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 10/100Base-TX |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 5 |
| LRE Port | No |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | No |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Appearance | |
|---|---|
| Color | Not Specified |
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Bypass | No |
| Brand | Brainboxes Limited |
| UPC/GTIN | 837324009866 |
| MPN | SW-005 |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

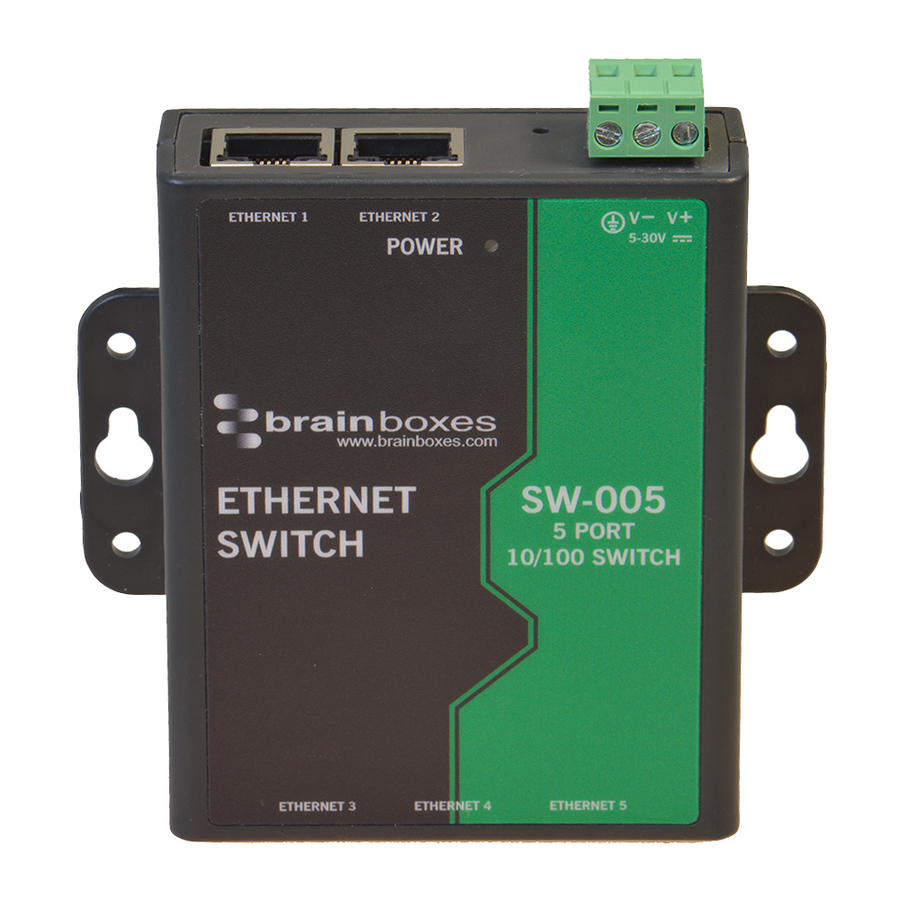

Brainboxes 5 Port Unmanaged Ethernet Switch Wall Mountable - 5 Ports - 10/100Base-TX - 2 Layer Supported - Twisted Pair - Wall Mountable - Lifetime Limited Warranty - TAA Compliant
