- Place the server up to 164 feet (50 m) away using the ServSwitch CX 4-User, or up to 32 feet (10 m) away using the ServSwitch CX Uno.
- "Keep alive" feature powers module even if switch loses power.
- Flash upgradable.
- Order one unit for each server-to-switch connection.
- SAMs available for PS/2, USB, and Sun servers, and with or without audio.
- Supports VGA Video up to 1920x1200, a USB Keyboard and Mouse, and analog audio
- Connects a computer or server to a CX Uno (up to 32 feet) ,CX (up to 150 feet), or CX Receiver (up to 980 feet)
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| Size / Dimensions | |
|---|---|
| Shipping Height | 1" |
| Shipping Width | 5" |
| Shipping Weight (Approximate) | 4.50 oz |
| General Features | |
|---|---|
| Manufacturer | Black Box Corporation |
| Cables | |
|---|---|
| Connector on Second End Details | 1 x 15-pin HD-15 - Male , 1 x USB Type A - Male , 1 x Mini-phone Audio - Male |
| Conductor | Copper |
| Cable Length | 164.04 ft |
| Cable Type | Mini-phone/RJ-45/USB/VGA |
| Connector Type on First End | RJ-45 Network - Female |
| Connector on First End Details | 1 x RJ-45 Network - Female |
| Connector Type on Second End | Mini-phone Audio - Male |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |

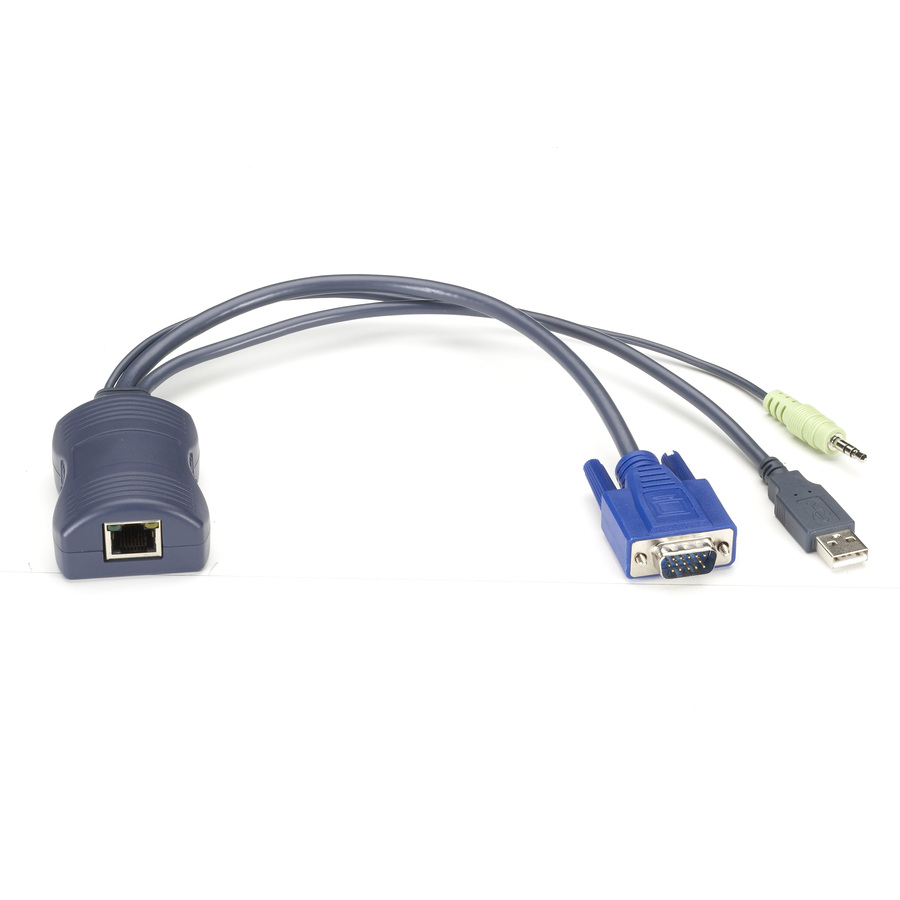

Black Box Server Access Module - VGA, USB with Audio - 164.04 ft Mini-phone/RJ-45/USB/VGA KVM Cable for KVM Switch - First End: 1 x RJ-45 Network - Female - Second End: 1 x 15-pin HD-15 - Male, 1 x USB Type A - Male, 1 x Mini-phone Audio - Male
