- Extend HDMI over a single CATx cable
The 4K CATx Lite Extender uses CATx technology for extension. Distribute digital signage content or other HD video and audio over a single CAT5e/6 cable. The transmitter-receiver combo makes it easy to send digital full 1080p-quality video and audio plus IR and serial RS-232 control signals up to 230 feet (70 m) or 4K/UHD up to 131 feet (40 m).
- Optimal PC-to-screen performance
The 4K CATx Lite Transmitter and Receiver feature EDID copy function and are HDCP-compliant and Blu-ray ready.
- Lossless compression for HD extension
The 4K CATx Lite Extender transmits broadcast-quality video and audio as well as all common PC resolutions (XGA, SXGA, UXGA, WSXGA) up to 3840 x 2160 (Full HD, WUXGA, UHD) at 30 Hz.
- Simplified control
The extender supports CEC passthrough and source device control via a built-in IR extender function (an IR emitter and IR receiver are included). IR commands received in the vicinity of the display extend back to the source device. This way, a receptionist stationed near a screen, for instance, can use an HDTV's remote controller to change settings on a source device in another room.
- 4K CATx Lite Extender Kit is great for:
- Hospitality (hotels and conference rooms)
- Digital signage (airports and shopping malls)
- Surveillance cameras
- Whole-home networking
- Point-to-point consumer application
- Uses CATx technology

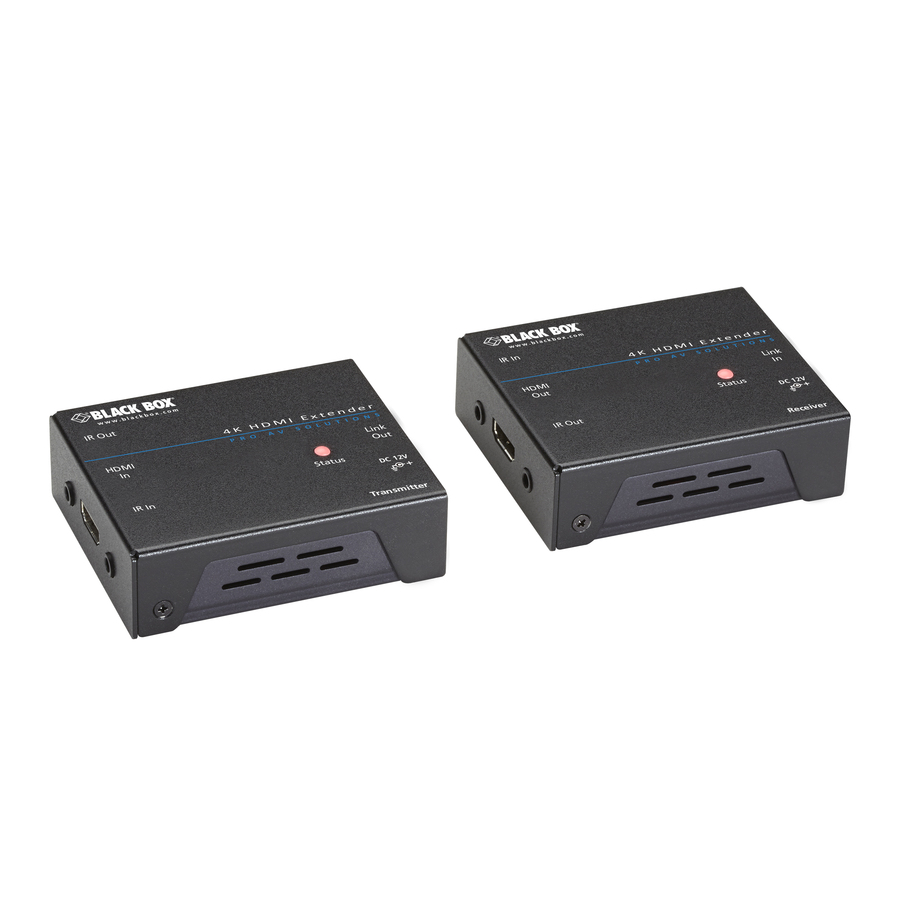

- This kit includes an HDMI transmitter and HDMI receiver
- Send HDMI signals to multimedia displays up to 230 feet (70 m) using a single CAT5e/6 cable
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1 lb |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 229.66 ft |
| Manufacturer | Black Box Corporation |
| Product Condition | New |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
Black Box 4K HDMI IR Extender 70M - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6
