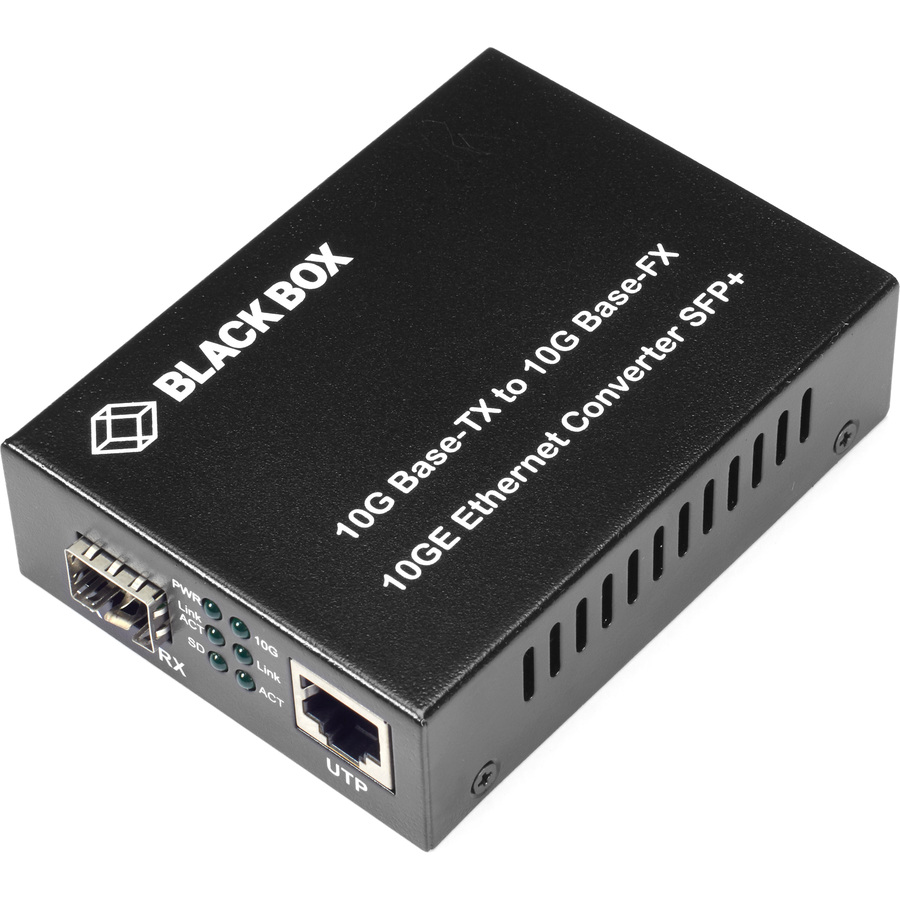

Black Box 10GBASE-TX to 10GBASE-FX Media Converter

$ 602.49 $ 602.49
$ 602.49

$ 602.49 / Units
  • Brand
  • Color - Not Specified
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Fiber Optic Cable Core/Claddi
  • Network Technology
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • Fiber Mode Supported
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP+ Slots
  • Plug/Connector Type
  • Total Number of Ports
  • Form Factor
  • Keyboard/Keypad Weight (Approximate)
  • Maximum Height Adjustment (Above)
  • Ethernet Technology
  • Media Type Supported
  • Frequency
  • Maximum Distance Supported
  • Maximum Operating Power Consumption
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

Convert quickly and easily
Convert 10GBASE-T to 10GBASE-R without hassle. The bridge media converter is designed with a 10GBASE Ethernet PHY chip that connects these two segment types smoothly.

Support for a variety of media
The converter supports 1000BASE-T: CAT5 UTP/STP. MAX 100m; 2.5GBASE-T: CAT5e UTP/STP. MAX 50m; 5GBASE-T: CAT5e UTP/STP. MAX 50m; and 10G BASE-T: CAT6a UTP/STP. MAX 50m.

  • Works as a mode converter, not a rate converter.
  • Standalone media converter (not to be used with chassis)
  • RJ45 port type and a SFP slot
  • Standards include 1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 1000BASE-X, 2500BASE-X, 5GBASE-R and 10GBASE-R
  • 12V DC power supply
  • Smoothly converts 10GBASE-T to 10GBASE-R
  • Designed with a 10GBASE Ethernet PHY chip that easily connects two types of segments
Brand
Brand Black Box Corporation
Power & Battery
Plug/Connector Type Barrel
Maximum Operating Power Consumption 12 W
Power Source AC Adapter
Networking & Connectivity
Network Technology 10GBase-FX
Ethernet Port
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Size / Dimensions
Form Factor Standalone
Keyboard/Keypad Weight (Approximate) 11.20 oz
Maximum Height Adjustment (Above) 1"
Appearance
Color Not Specified
General Features
Frequency 60 Hz
Maximum Distance Supported 0.10 km
Manufacturer Black Box Corporation
Expansion Slots
Total Number of Expansion Slots 1
Expansion Slot Type SFP+
Number of SFP+ Slots 1
Misc Ports
Total Number of Ports 1
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
Cables
Fiber Optic Cable Core/Claddi 10/125 µm
Fiber Mode Supported Multi-mode
Compliance & Certification
Environmentally Friendly Yes
Brand Black Box Corporation
UPC/GTIN 822088130925
MPN LGC220A
Unit Count 1 Units
Warranty 3 Year
