The KH1508A differs from the KH1508 in that the A release uses CPU modules with a permanent CAT5 cable molded into a single unit, and the console port now supports any combination of PS/2 and USB keyboards and mice
It allows access to eight directly connected computers, and through a daisy chain connection, an additional 31 KVMs to control a total of 256 computers from a single console.
- Two-Level Password Security - Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
- Multiple User Accounts - Supports up to 10 user and 1 administrator accounts
- Multiplatform support - PC, Mac, Sun, and serial
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Configue port access rights for users on a port - by - port basis
- Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
- Console conversion - any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
- One KVM console control up to 8 direc
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | UXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 220 V AC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 8 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1600 x 1200 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 6 lb |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Transmitter Depth | 6.30" |
| Transmitter Weight (Approximate) | 6 lb |
| Transmitter Height | 1.70" |
| Transmitter Width | 17.20" |
| General Features | |
|---|---|
| KVM Technology | Analog |
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 8 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Number of PS/2 Ports | 2 |
| PS/2 Port | Yes |

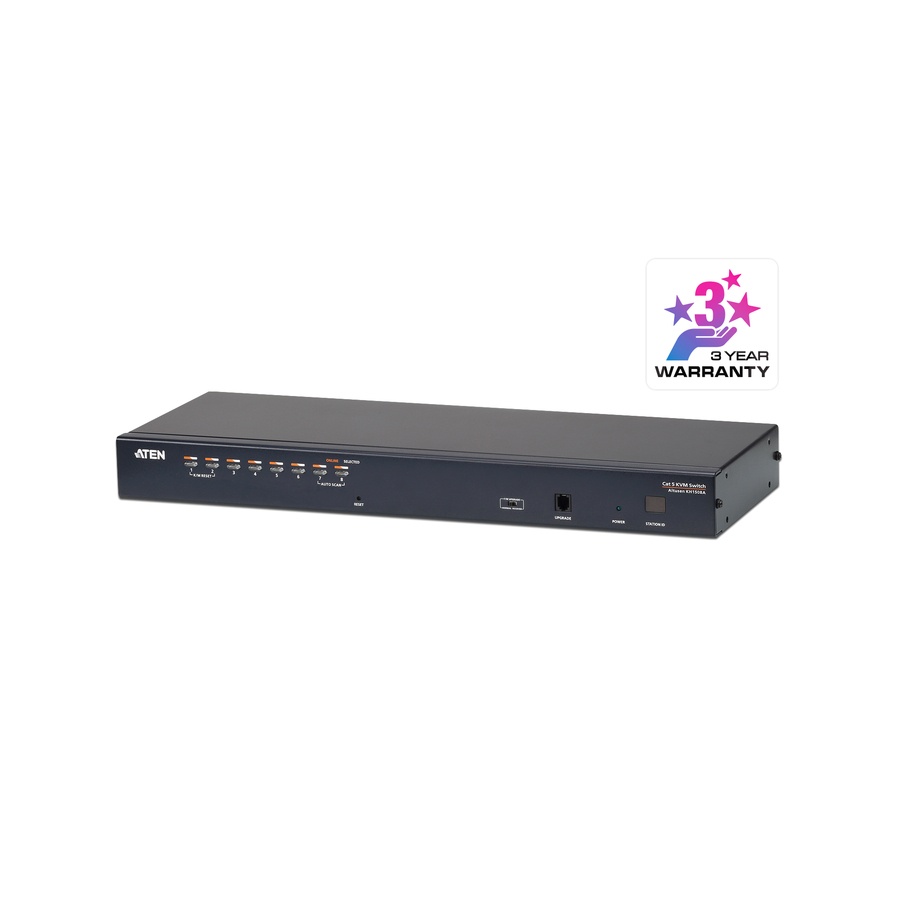

ATEN KH1508A KVM Extender - 8 Computer(s) - UXGA - 1600 x 1200 Maximum Video Resolution - 8 x Network (RJ-45) - 2 x PS/2 Port - 1 x VGA - 110 V AC, 220 V AC Input Voltage - Rack-mountable - 1U
