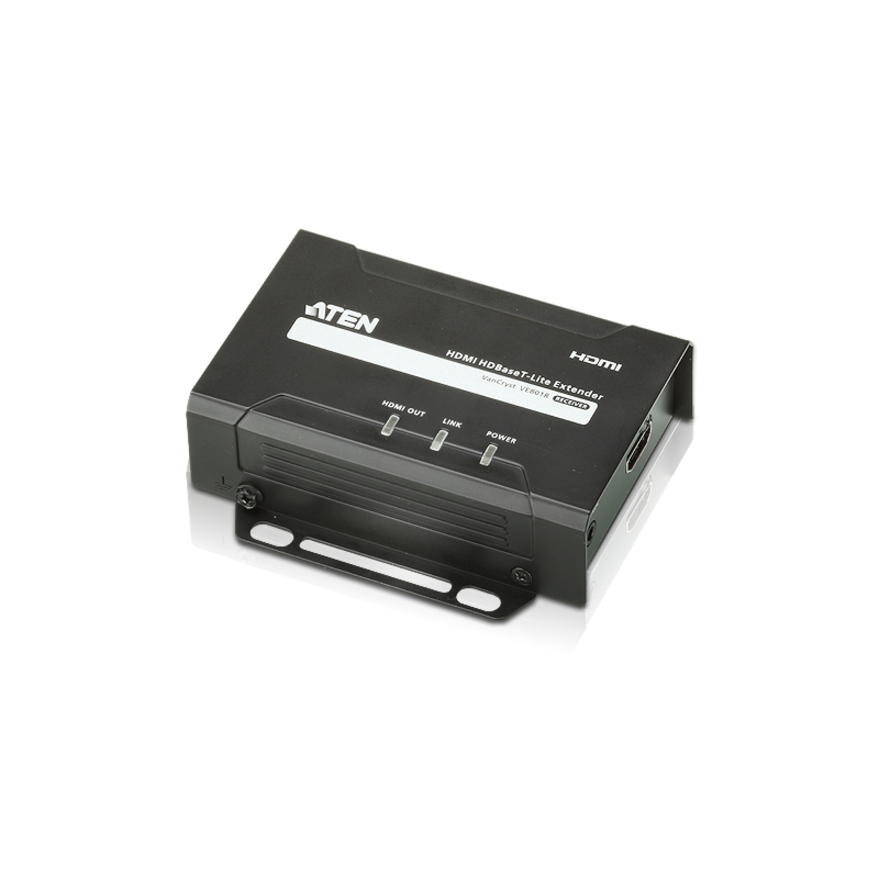

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
- Rack-mountable
- Plug-and-play
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 3.43" |
| Receiver Weight (Approximate) | 8.47 oz |
| Receiver Height | 1.18" |
| Receiver Depth | 3.88" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 70.87" |
| Manufacturer | ATEN Technology, Inc |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6a |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN HDMI HDBaseT-Lite Receiver (HDBaseT Class B)-TAA Compliant - 1 Output Device - 70.87" Range - 2 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
